Transfer Clutch: Removal

Remove the rear drive shaft. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>REAR DRIVE SHAFT>REMOVAL .

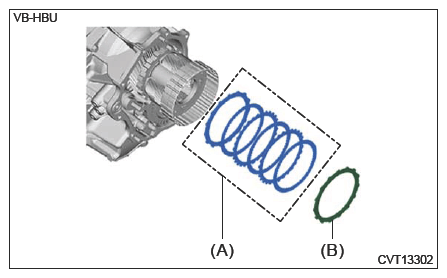

Remove the driven plate No. 3 and transfer clutch plate set from the center differential carrier.

Courtesy of SUBARU OF AMERICA, INC.

(A)	Transfer clutch plate set
(B)	Driven plate No. 3
