CROSSTREK Model

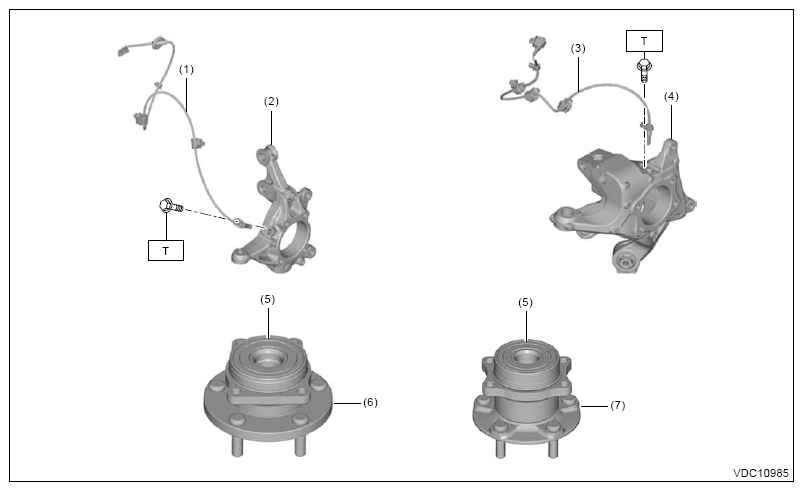

- 2024MY
| (1) | Sensor sub ASSY front |
| (2) | Front axle housing |
| (3) | Sensor sub ASSY rear |
| (4) | Rear axle housing |
| (5) | Magnetic encoder |
| (6) | Front hub unit bearing |
| (7) | Rear hub unit bearing |
Tightening torque: N.m (kgf-m, ft-lb)
T: 7.5 (0.8, 5.5)

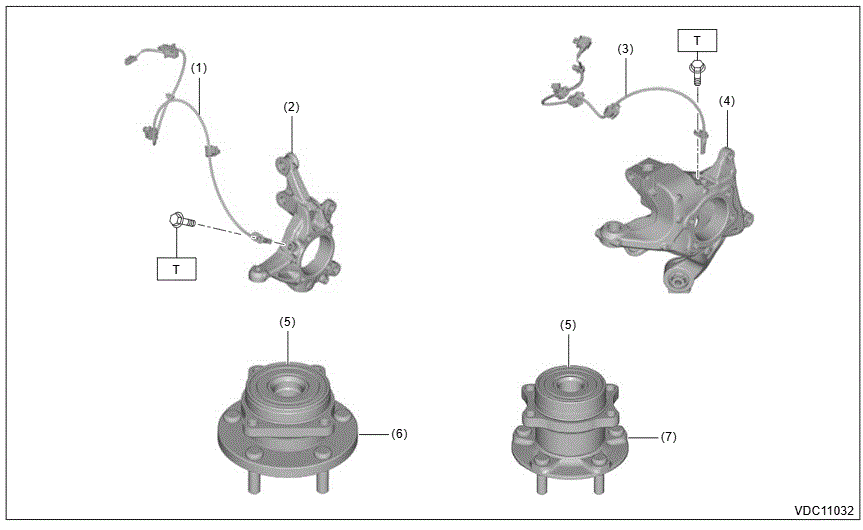

- 2025 MY
| (1) | Sensor sub ASSY front |
| (2) | Front axle housing |
| (3) | Sensor sub ASSY rear |
| (4) | Rear axle housing |
| (5) | Magnetic encoder |
| (6) | Front hub unit bearing |
| (7) | Rear hub unit bearing |
Tightening torque: N.m (kgf-m, ft-lb)
T: 7.5 (0.8, 5.5)
