Battery Sensor

VIN:] JF1############## [model and] JF2############## [model

Courtesy of SUBARU OF AMERICA, INC.

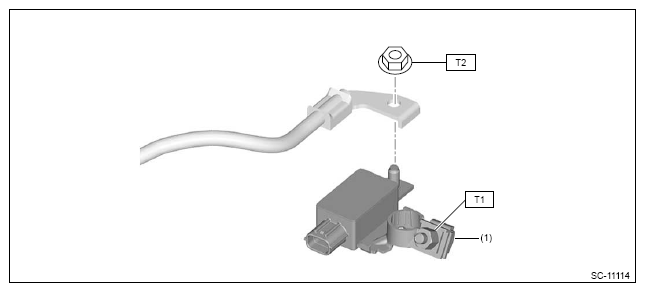

(1) Battery sensor

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6 (0.6, 4.4)

T2: 7.5 (0.8, 5.5)
VIN:] 4S4############## [model

Courtesy of SUBARU OF AMERICA, INC.

(1) Battery sensor

Tightening torque: N.m (kgf-m, ft-lb)

T1: 3.4 (0.3, 2.5)

T2: 7.5 (0.8, 5.5)
