IMPREZA Model

NOTE: Components: Ref. to FRONT SUSPENSION>GENERAL DESCRIPTION>COMPONENT>FRONT SUSPENSION .
  1. Remove the front wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .
  2. Remove the under cover front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .
  3. Remove the crossmember support rear. Ref. to FRONT SUSPENSION>CROSSMEMBER SUPPORT>REMOVAL .
  4. Remove the front arm assembly.
    CAUTION: Be careful not to damage the boot of the ball joint.

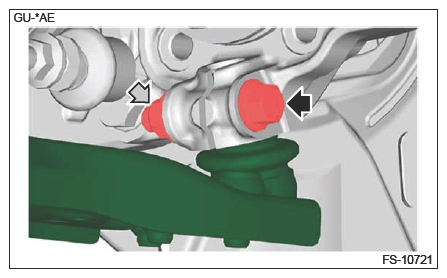

    1. Remove the bolt and nut from the front axle housing.
      CAUTION: Turn and remove the nut while holding the bolt side.
    2. Lower the front arm assembly, and remove the ball stud from the front axle housing.
      G16762005Courtesy of SUBARU OF AMERICA, INC.

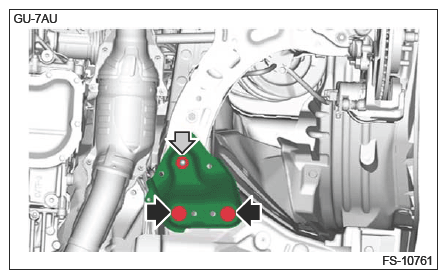

    3. Remove the nut.
    4. Remove the bolt.
    5. Remove the front arm rear plate.
      G16762006Courtesy of SUBARU OF AMERICA, INC.

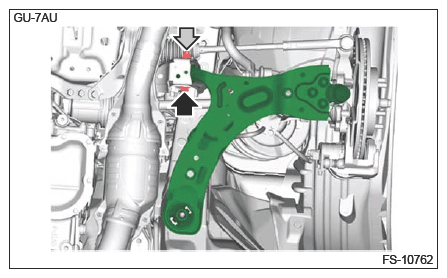

    6. Remove the bolts and nuts.
    7. Remove the front arm assembly.
      G16762007Courtesy of SUBARU OF AMERICA, INC.
