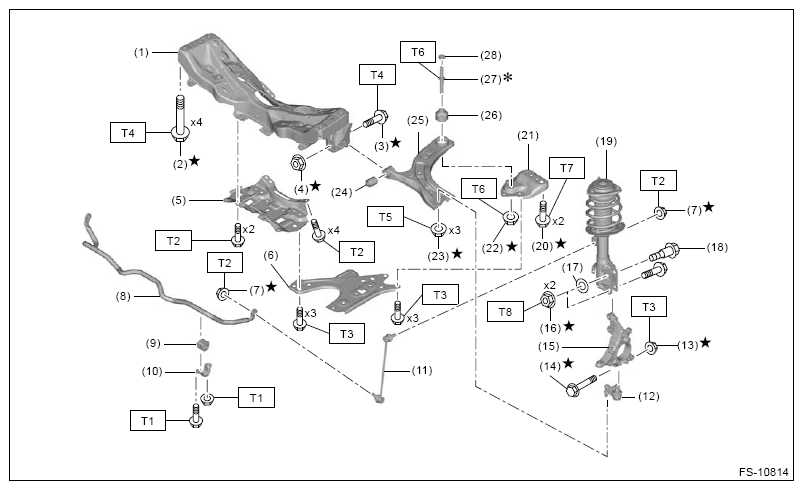

IMPREZA Model
| (1) | COMPL front crossmember |
| (2) | Flange bolt |
| (3) | Flange bolt |
| (4) | Self-locking nut |
| (5) | Crossmember support front |
| (6) | Crossmember support rear LH |
| (7) | Flange nut |
| (8) | Front stabilizer |
| (9) | Front stabilizer rubber bushing |
| (10) | Clamp stabilizer |
| (11) | Stabilizer link front LH |
| (12) | Ball joint COMPL |
| (13) | Flange nut |
| (14) | Flange bolt |
| (15) | Front axle housing LH |
| (16) | Flange nut |
| (17) | Adjusting washer |
| (18) | Adjusting bolt |
| (19) | Strut ASSY LH |
| (20) | Flange bolt |
| (21) | Front arm rear plate LH |
| (22) | Self-locking nut |
| (23) | Flange nut |
| (24) | Rubber bushing front arm front |
| (25) | Arm ASSY front LH |
| (26) | Rubber bushing front arm rear |
| (27) | Stud bolt |
| (28) | Stopper arm front |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 25 (2.5, 18.4)
T2: 60 (6.1, 44.3)
T3: 70 (7.1, 51.6)
T4: 95 (9.7, 70.1)
T5: 100 (10.2, 73.8)
T6: 110 (11.2, 81.1)
T7: 150 (15.3, 110.6)
T8: 155 (15.8, 114.3)
*: Do not reuse the stud bolt when it has been removed from the vehicle.
