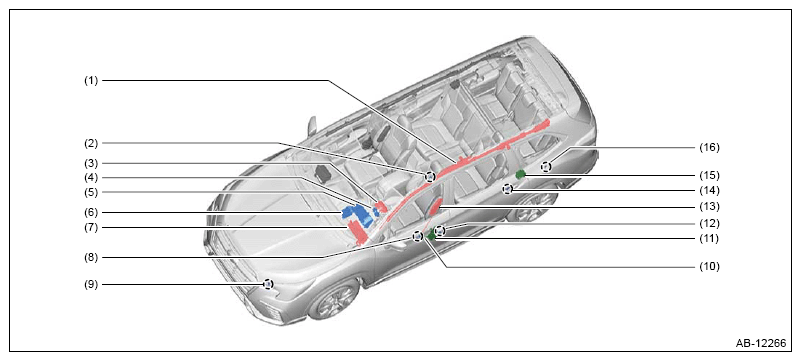

| (1) | Curtain airbag module LH |
| (2) | Side impact sensor (under the second-row center seat) |
| (3) | Driver's airbag module |
| (4) | Steering roll connector |
| (5) | Airbag warning light (in combination meter) |
| (6) | Airbag control module |
| (7) | Knee airbag module |
| (8) | Side impact sensor LH (front door) |
| (9) | Front impact sensor LH |
| (10) | Lap seat belt pretensioner LH |
| (11) | Seatbelt pretensioner and adaptive force limiter LH |
| (12) | Side impact sensor LH (center pillar) |
| (13) | Side airbag module LH |
| (14) | Side impact sensor LH (ahead of rear wheel house) |
| (15) | Second-row seatbelt pretensioner LH |
| (16) | Side impact sensor LH (backward of rear wheel house) |

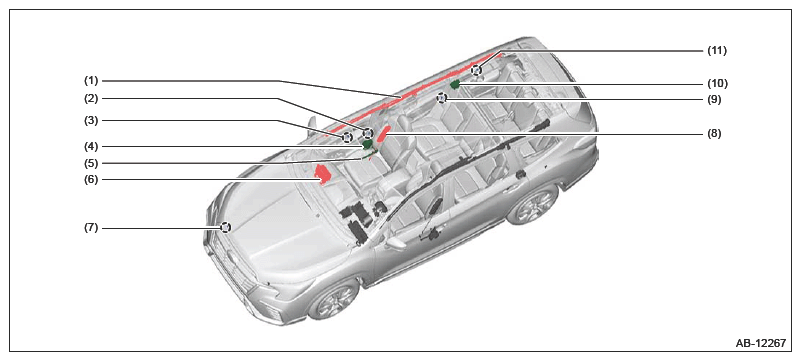

| (1) | Curtain airbag module RH |
| (2) | Side impact sensor RH (center pillar) |
| (3) | Side impact sensor RH (front door) |
| (4) | Seatbelt pretensioner and adaptive force limiter RH |
| (5) | Lap seat belt pretensioner RH |
| (6) | Passenger's airbag module |
| (7) | Front impact sensor RH |
| (8) | Side airbag module RH |
| (9) | Side impact sensor RH (ahead of rear wheel house) |
| (10) | Second-row seatbelt pretensioner RH |
| (11) | Side impact sensor RH (backward of rear wheel house) |
NOTE:
For detailed layout drawings on the occupant detection control module, occupant detection sensor and seat position sensor, refer to "OCCUPANT DETECTION (DIAGNOSTICS)". Ref. to OCCUPANT DETECTION (DIAGNOSTICS)>ELECTRICAL COMPONENT LOCATION>LOCATION
.
