Brake Booster
WARNING: This page is about a different car, the 2023 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of SUBARU OF AMERICA, INC.

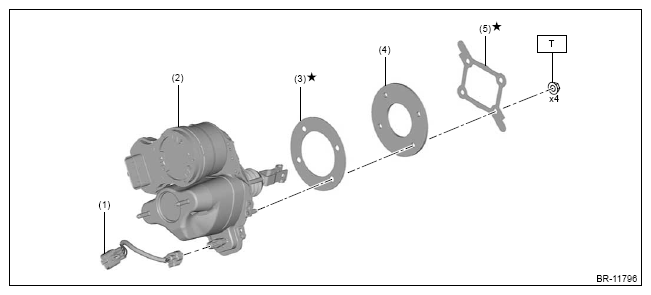

| (1) |
Adapter cord booster |
| (2) |
Electric booster ASSY |
| (3) |
Gasket A |
| (4) |
Stopper electric booster |
| (5) |
Gasket B |
Tightening torque: N.m (kgf-m, ft-lb)
T: 18 (1.8, 13.3)
