Rear Disc Brake

WARNING: This page is about a different car, the 2023 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.

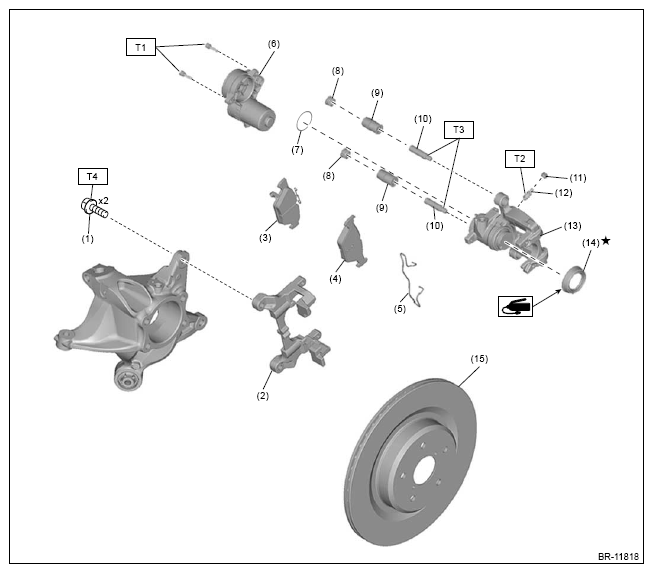

Fig 1: Rear Disc Brake Components Location

Courtesy of SUBARU OF AMERICA, INC.

(1)

Mounting bolt

(2)

Support rear disc brake

(3)

Pad COMPL inner

(4)

Pad COMPL outer

(5)

Pad clip

(6)

Parking brake actuator⁽¹⁾⁽²⁾

(7)

O-ring⁽²⁾

(9)

Pin boot

(10)

Guide pin rear brake

(11)

Bleeder cap

(12)

Bleeder screw

(13)

Caliper body⁽²⁾

(14)

Boot piston

(15)

Brake disc rear (8) Cap

⁽¹⁾	Do not reuse it when the emergency release of parking brake was performed or when the actuator has a malfunction.

⁽²⁾	When replacing the parking brake actuator or the caliper body, always replace the O-ring with the supplied new part.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 8 (0.8, 5.9)

T2: 17 (1.7, 12.5)

T3: 25 (2.5, 18.4)

T4: 115 (11.7, 84.8)
