Section 7 (Lighting System): General Description: Specification
WARNING: This page is about a different car, the 2023 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of SUBARU OF AMERICA, INC.
|

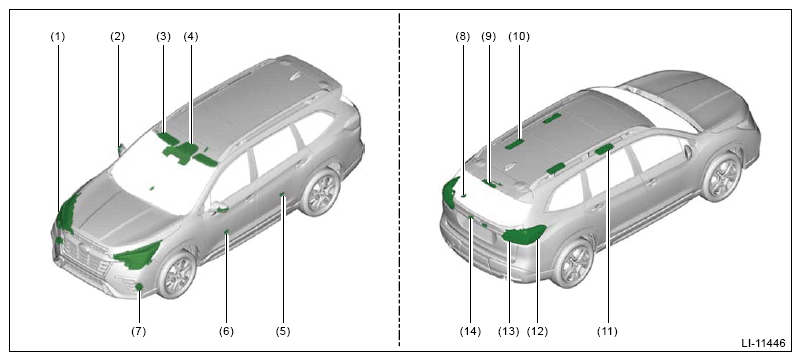

| No. |
Description |
Capacity and wattage |
Type |
| (1) |
Headlight |
High beam/low beam/daytime running light |
13.5 V - 29/13.5/20.3 W (LED) |
|
| Front turn signal light |
12 V - 28 W |
7444NA |
| Accessory light/Parking light |
13.5 V - 3.64/1.23 W (LED) |
|
| Side marker light |
13.5 V - 3.1 W (LED) |
|
| (2) |
Side turn signal light |
12 V - 0.4 W (LED) |
|
| (3) |
Vanity mirror light |
14 V - 1.4 W |
- |
| (4) |
Spot map light |
12 V - 8 W |
- |
| (5) |
Rear door step light |
12 V - 5 W |
W5W |
| (6) |
Front door step light |
12 V - 5 W |
W5W |
| (7) |
Front fog light |
12 V - 5.4 W (LED) |
|
| (8) |
Luggage room light |
12 V - 5 W |
W5W |
| (9) |
High-mounted stop light |
12 V - 1.1 W (LED) |
|
| (10) |
Reading light (3rd row) |
12 V - 8 W |
- |
| (11) |
Reading light (2nd row) |
12 V - 8 W |
- |
| (12) |
Rear combination light |
Tail light |
13.5 V - 0.4 W (LED) |
|
| Stop light |
13.5 V - 5 W (LED) |
|
| Turn signal light |
12 V - 21 W |
WY21W |
| Side marker light |
12 V - 5 W |
W5W |
| Back-up light |
12 V - 16 W |
W16W |
| (13) |
Rear finisher |
- |
- |
| (14) |
License plate light |
12 V - 5 W |
W5W |
 Courtesy of SUBARU OF AMERICA, INC.
|

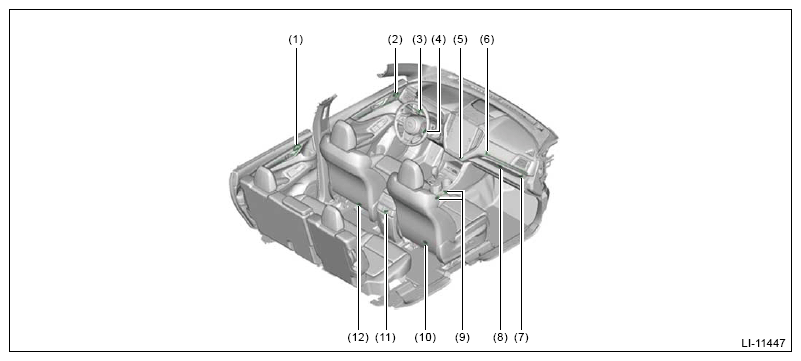

| No. |
Description |
Capacity |
Type |
| (1) |
Rear door ambient light |
12 V (LED) |
|
| (2) |
Front door ambient light |
12 V (LED) |
|
| (3) |
Instrument panel ambient light (driver's seat) |
12 V (LED) |
|
| (4) |
Front foot light (driver's seat) |
12 V (LED) |
|
| (5) |
Pocket light |
12 V (LED) |
|
| (6) |
Instrument panel ambient light (passenger's seat) |
12 V (LED) |
|
| (7) |
Front foot light (passenger's seat) |
12 V (LED) |
|
| (8) |
Glove box light |
12 V (LED) |
|
| (9) |
Cup holder light |
12 V (LED) |
|
| (10) |
Rear foot light (passenger's seat) |
12 V (LED) |
|
| (11) |
Center foot light |
12 V (LED) |
|
| (12) |
Rear foot light (driver's seat) |
12 V (LED) |
|
