Front Disc Brake
WARNING: This page is about a different car, the 2024 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.

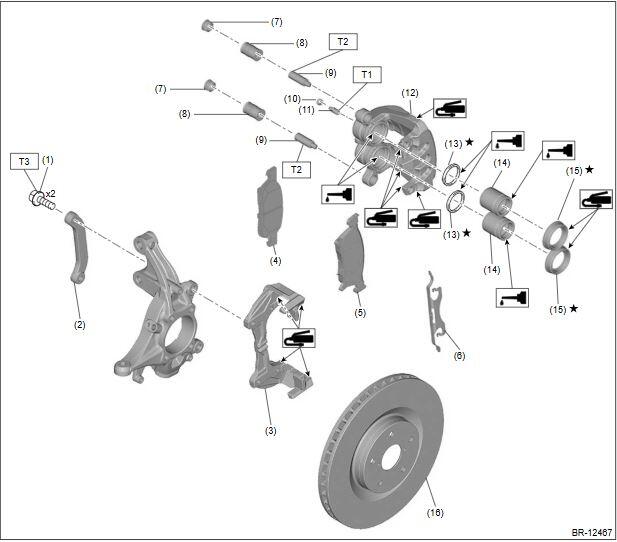

| (1) | Mounting bolt |
| (2) | Tie-bar |
| (3) | Support front disc brake |
| (4) | Pad COMPL inner |
| (5) | Pad COMPL outer |
| (6) | Pad clip |
| (7) | Cap |
| (8) | Pin boot |
| (9) | Guide pin front brake |
| (10) | Bleeder cap |
| (11) | Bleeder screw |
| (12) | Caliper body |
| (13) | Piston seal |
| (14) | Piston disc brake |
| (15) | Boot piston |
| (16) | Brake disc front |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 17 (1.7, 12.5)
T2: 55 (5.6, 40.6)
T3: 142 (14.5, 104.7)
