Body Integrated Unit: Installation

CAUTION:

When the control module related to immobilizer has been replaced, be sure to perform the registration of immobilizer system. (Model without keyless access with push button start (except for C5 model))
Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .

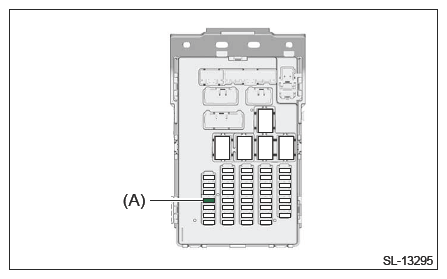

When the body integrated unit has been replaced with a new part, install the fuse (A) (VIN:]
4S4############## [models)

Courtesy of SUBARU OF AMERICA, INC.
Install the body integrated unit.
1. Connect each connector.
2. Install the body integrated unit.
  Tightening torque:

  7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
Install the knee airbag module. Ref. to AIRBAG SYSTEM>KNEE AIRBAG MODULE>INSTALLATION .
Install the cover LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>INSTALLATION .
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
When replacing a body integrated unit, perform the following steps.
- Model without keyless access with push button start (except for C5 model)
  1. Register the immobilizer. Ref. to SECURITY AND LOCKS>GENERAL DESCRIPTION>SPECIFICATION>IMMOBILIZER REGISTRATION .
  2. Set the current settings as recorded. Ref. to BODY CONTROL (DIAGNOSTICS)>REGISTRATION BODY INTEGRATED UNIT>OPERATION>REGISTRATION BODY INTEGRATED UNIT (FUNCTION SETTING) .
- Model without keyless access with push button start (for C5 model)/Model with keyless access with push button start
  1. Set the current settings as recorded. Ref. to BODY CONTROL (DIAGNOSTICS)>REGISTRATION BODY INTEGRATED UNIT>OPERATION>REGISTRATION BODY INTEGRATED UNIT (FUNCTION SETTING) .
