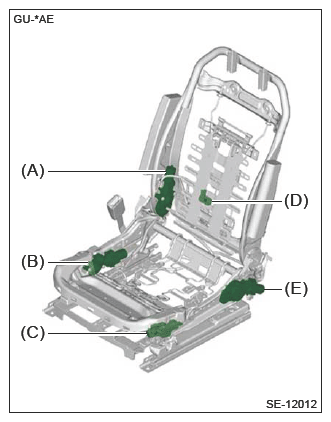

Motor Layout

G16762213

Courtesy of SUBARU OF AMERICA, INC.

(A)	Reclining motor
(B)	Tilt motor
(C)	Slide motor
(D)	Lumbar motor
(E)	Lifter motor
