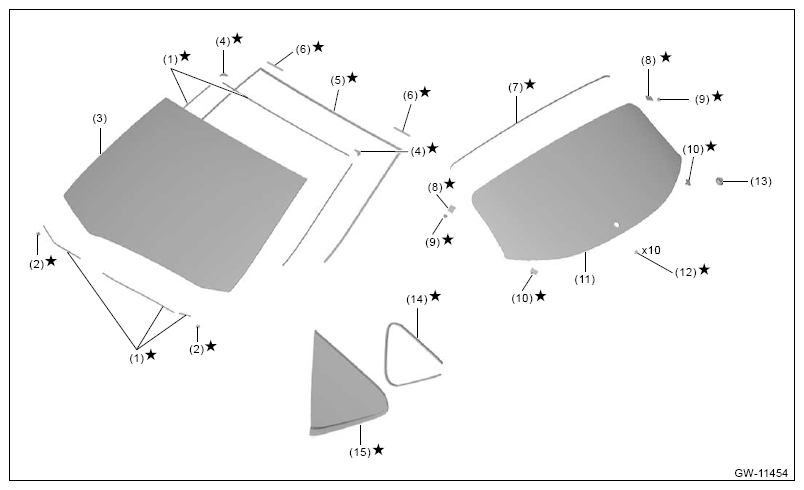

Fixed Glass
| (1) | Dam rubber windshield |
| (2) | Seal lower |
| (3) | Glass windshield |
| (4) | Locating pin windshield |
| (5) | Molding windshield |
| (6) | Seal upper |
| (7) | Dam rubber rear gate |
| (8) | Holder rear gate upper |
| (9) | Clip rear gate |
| 10) | Locating pin rear gate |
| (11) | Glass rear gate |
| (12) | Spacer rear gate |
| (13) | Cap pivot |
| (14) | Dam rubber rear quarter |
| (15) | Glass rear quarter |
NOTE:
The following parts cannot be removed from the glass windshield.
- Base inner mirror
- EyeSight stereo camera bracket
- Wide angle mono camera bracket
