Switch Power Window Sub Rear

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the trim panel rear door. Ref. to EXTERIOR/INTERIOR TRIM>DOOR TRIM>REMOVAL>REAR DOOR .
  3. Remove the switch power window sub rear.

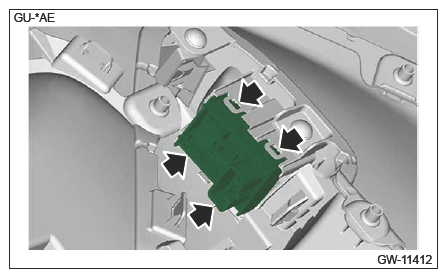

    1. Release the claw.
    2. Remove the switch power window sub rear.
    G16767715Courtesy of SUBARU OF AMERICA, INC.
