PCV System 2

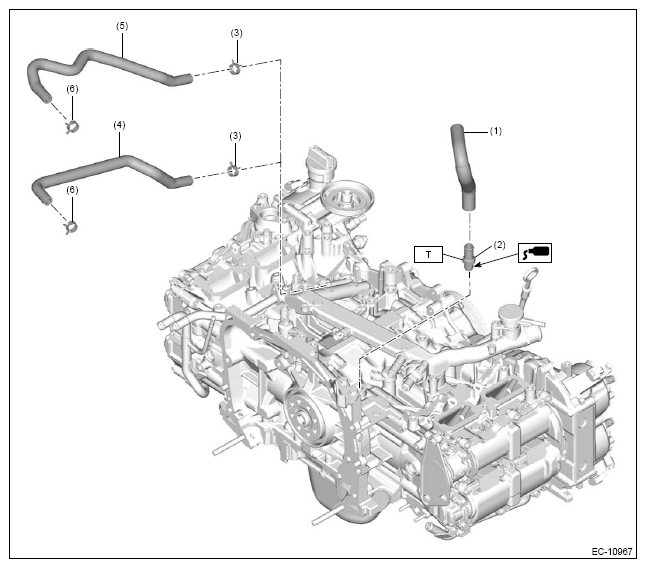

Fig 1: PCV System 2 Components Location

G16760817

Courtesy of SUBARU OF AMERICA, INC.

(1)	PCV hose No. 1
(2)	PCV VALVE
(3)	Clip
(4)	PCV hose No. 2 (2.0 L model)
(5)	PCV hose No. 2 (2.5 L model)
(6)	Clip

Tightening torque: Nm (kgf-m, ft-lb)

T: 23 (2.3, 17.0)
