PCV Connector: Installation

Install the PCV connector.

Install the new PCV connector.
Tightening torque :

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

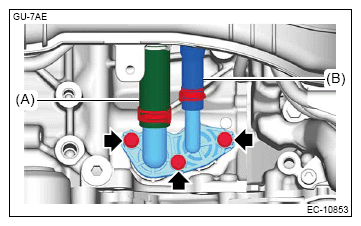

Connect the water hose (A).

Connect the PCV hose No. 2 (B).

Courtesy of SUBARU OF AMERICA, INC.

Install the bracket air conditioner and the battery cable assembly.

Install the bracket air conditioner. Ref. to AIR CONDITIONER>COMPRESSOR>INSTALLATION .
Secure the battery cable assembly with the clip (E) and clip (D).
Connect the connector (C) and connector (B).

Connect the terminal B (A).

CAUTION: Clean and degrease the bolt threads, terminals and seating surfaces. Residual anti-rust grease or dirt may cause overtorque.

Tightening torque :

15.5 N.m (1.6 kgf-m, 11.4 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

After connecting the terminal B, apply a thin coat of anti-rust grease to the terminal section.

CAUTION: This procedure is required to prevent rust and suppress sulfation.

NOTE: Apply anti-rust grease to the area shown in the figure.

2.0 L model

Courtesy of SUBARU OF AMERICA, INC.

(A)	Anti-rust grease application area

2.5 L model

Courtesy of SUBARU OF AMERICA, INC.

(A)	Anti-rust grease application area

Preparation items:

Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Fill engine coolant. Ref. to COOLING (H4DO)>ENGINE COOLANT>REPLACEMENT>FILLING OF ENGINE COOLANT .
Check refrigerant leaks. Ref. to AIR CONDITIONER>REFRIGERANT LEAK CHECK>INSPECTION .
