Front Strut: Removal

NOTE: Components: Ref. to FRONT SUSPENSION>GENERAL DESCRIPTION>COMPONENT>FRONT STRUT .
  1. Remove the front wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .

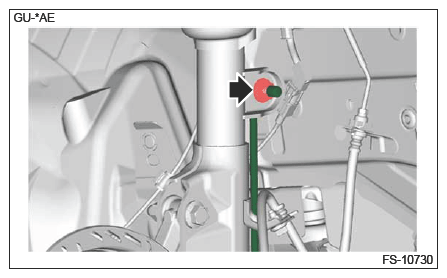

  2. Disconnect the front stabilizer link (upper).
    1. Remove the nut.
    2. Disconnect the front stabilizer link (upper).
      G16762047Courtesy of SUBARU OF AMERICA, INC.

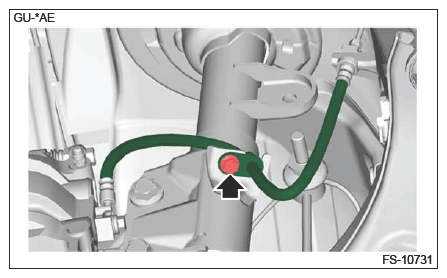

  3. Remove the brake hose bracket.
    1. Remove the bolt.
    2. Remove the brake hose bracket.
      G16762048Courtesy of SUBARU OF AMERICA, INC.

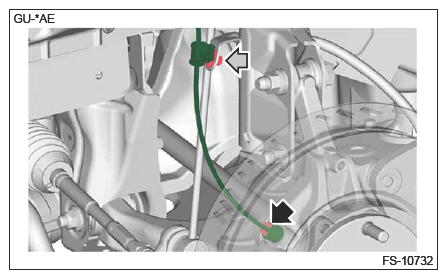

  4. Disconnect the sensor sub assembly front.
    1. Remove the bolt.
    2. Remove the harness clip.
    3. Disconnect the sensor sub assembly front.
      G16762049Courtesy of SUBARU OF AMERICA, INC.

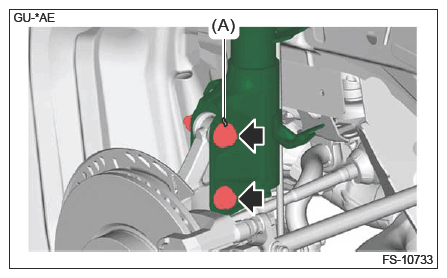

  5. Remove the strut assembly.
    1. Place an alignment mark (A) on the adjusting bolt and the strut assembly.
    2. Remove the adjusting bolts and the bolts.
      CAUTION: Turn and remove the nut while holding the bolt side.
      G16762050Courtesy of SUBARU OF AMERICA, INC.

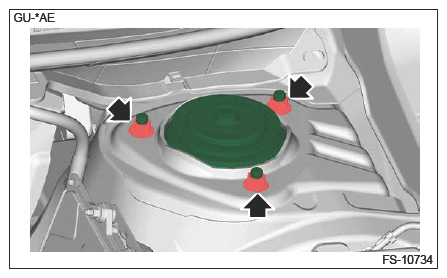

    3. Remove the nut.
    4. Remove the strut assembly.
      G16762051Courtesy of SUBARU OF AMERICA, INC.
