Stabilizer Bushing

NOTE: Components: Ref. to FRONT SUSPENSION>GENERAL DESCRIPTION>COMPONENT>FRONT SUSPENSION .
  1. Remove the under cover front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .
  2. Remove the rubber bushing front stabilizer.
    1. Remove the bolts and nuts.
    2. Remove the clamp stabilizer.
    3. Remove the rubber bushing front stabilizer.

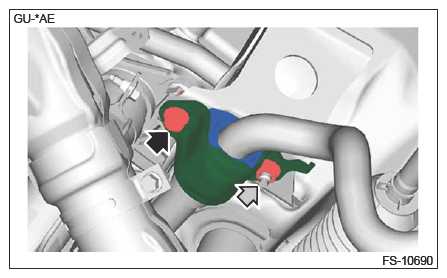

    G16761989Courtesy of SUBARU OF AMERICA, INC.
