Front Suspension System And Wheel Alignment: Stabilizer: Removal: Stabilizer

CAUTION: Be careful not to damage the boot of the ball joint.
NOTE: Components: Ref. to FRONT SUSPENSION>GENERAL DESCRIPTION>COMPONENT>FRONT SUSPENSION .
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the under cover front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .
  3. Remove the crossmember support rear LH. Ref. to FRONT SUSPENSION>CROSSMEMBER SUPPORT>REMOVAL .
  4. Remove the front exhaust pipe. Ref. to EXHAUST (H4DO)>FRONT EXHAUST PIPE>REMOVAL .

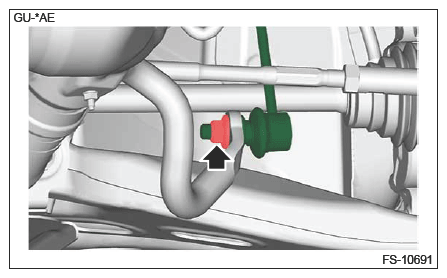

  5. Disconnect the front stabilizer link (lower).
    1. Remove the nut.
    2. Disconnect the front stabilizer link (lower).
    G16761990Courtesy of SUBARU OF AMERICA, INC.

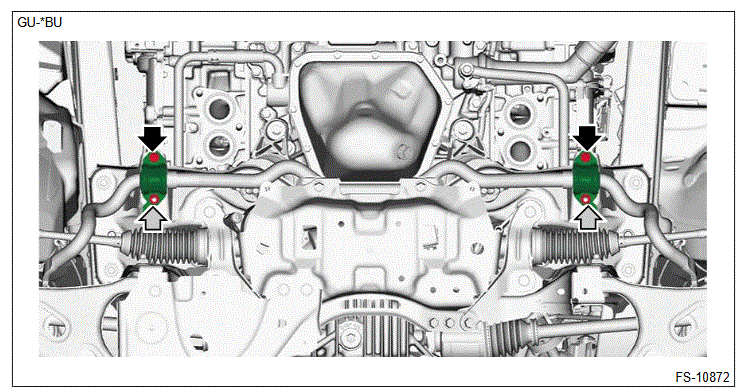

  6. Remove the front stabilizer.
    1. Remove the bolts and nuts.
    2. Remove the clamp stabilizer.
    3. Remove the rubber bushing front stabilizer.
      G00659637Courtesy of SUBARU OF AMERICA, INC.
    4. Slide the front stabilizer to the right side of the vehicle.
      G13949548Courtesy of SUBARU OF AMERICA, INC.
    5. Move the front stabilizer in the direction of arrow.
      G13949549Courtesy of SUBARU OF AMERICA, INC.
    6. Remove the front stabilizer.
