Rear Suspension System: Stabilizer: Removal: Stabilizer

  1. Lift up the vehicle.
  2. Remove the nut and disconnect the right and left stabilizer links rear (upper part). Ref. to REAR SUSPENSION>STABILIZER>REMOVAL>STABILIZER LINK .
  3. Remove the stabilizer rear.
    1. Remove the bolts and remove the clamp stabilizer.
    2. Remove the stabilizer rear.

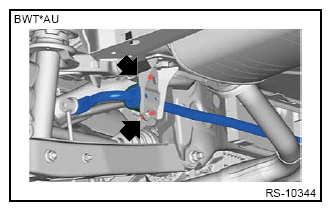

    G13620904Courtesy of SUBARU OF AMERICA, INC.
