Telematics System (Diagnostics)
›
General Description
›

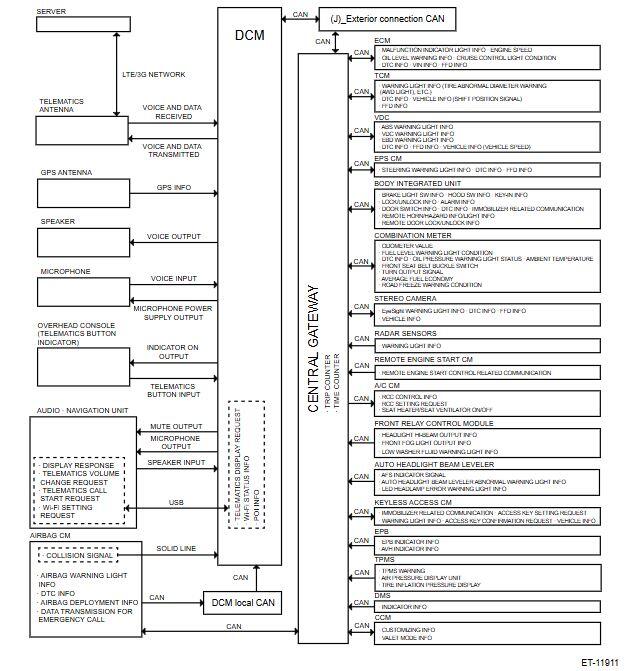

System Block Diagram
System Block Diagram
Main signals used between DCM and relevant Control Module
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
