Circuit Breaker

CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the cover LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>REMOVAL .

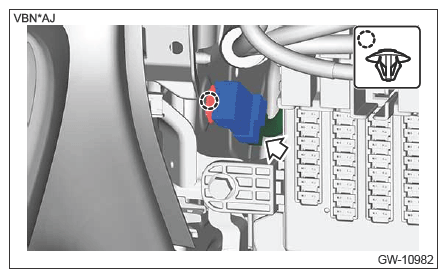

  3. Remove the circuit breaker.
    1. Disconnect the connector.
    2. Release the clip, and remove the circuit breaker.
      CAUTION: Be careful not to apply excessive force when pulling the clip, as the clip may become damaged.
      G13938769Courtesy of SUBARU OF AMERICA, INC.
