Horn System: Horn: Inspection

  1. Check the horn sounds when applying the battery voltage to the horn assembly.

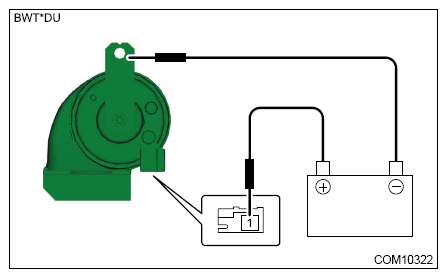

    • Horn assembly Lo side
    G16386078Courtesy of SUBARU OF AMERICA, INC.

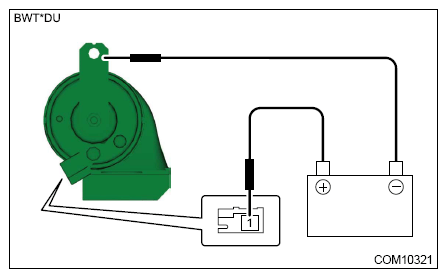

    • Horn assembly Hi side
    G16386079Courtesy of SUBARU OF AMERICA, INC.
    Terminal No. Inspection conditions Specification
    1 (+) - Horn case (-) Connect battery to the terminals Sounds
  2. If it does not operate normally, replace the horn assembly.
