Section 14 (Cellular/Entertainment/Navigation/Audio)
›
Schematic and Routing Diagram
›
Steering Wheel Secondary/Configurable Control Schematics
Steering Wheel Secondary/Configurable Control Schematics
WARNING:
This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

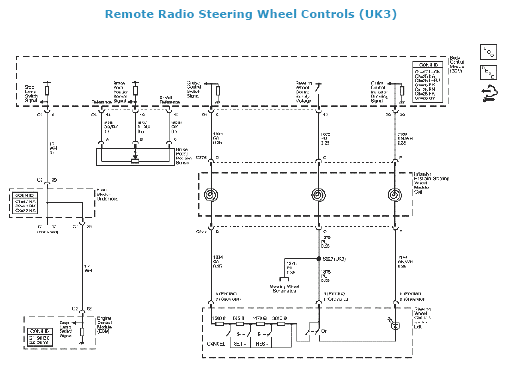

Fig 1: Identifying Remote Radio Steering Wheel Controls Schematic Diagram
Courtesy of SUZUKI OF AMERICA CORP.
