SIR Component Views

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

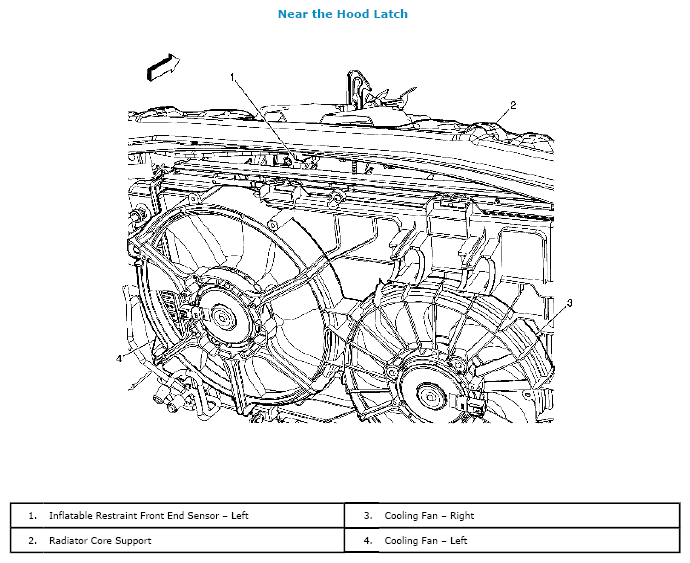

Fig 1: Identifying Inflatable Restraint Front End Sensor, Cooling Fan & Radiator Core Support

G04844108

Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: Identifying I/P & Console Components

G04844109

Courtesy of SUZUKI OF AMERICA CORP.

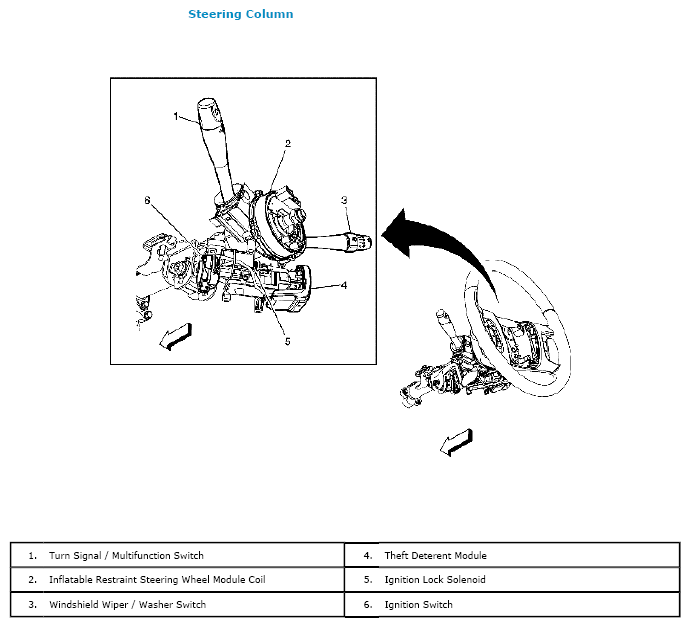

Fig 3: Identifying Steering Column Components

G04844110

Courtesy of SUZUKI OF AMERICA CORP.

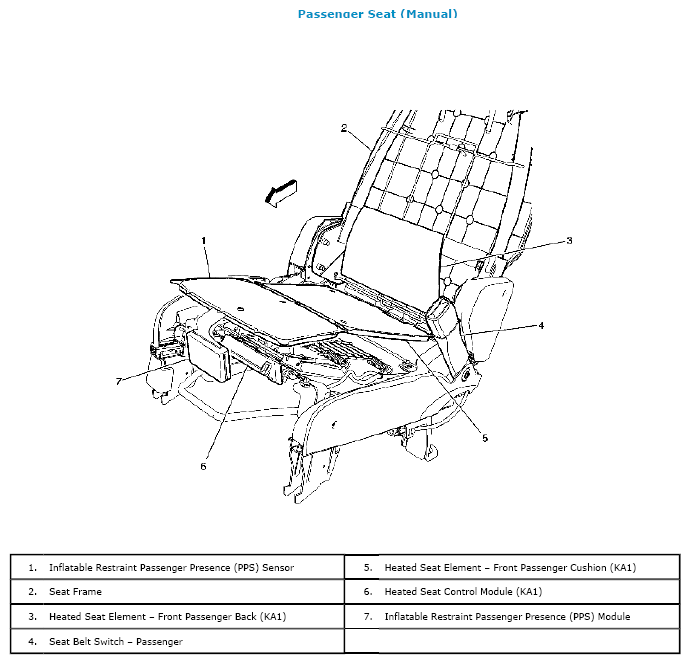

Fig 4: Identifying Passenger Seat (Manual) Components

G04844111

Courtesy of SUZUKI OF AMERICA CORP.

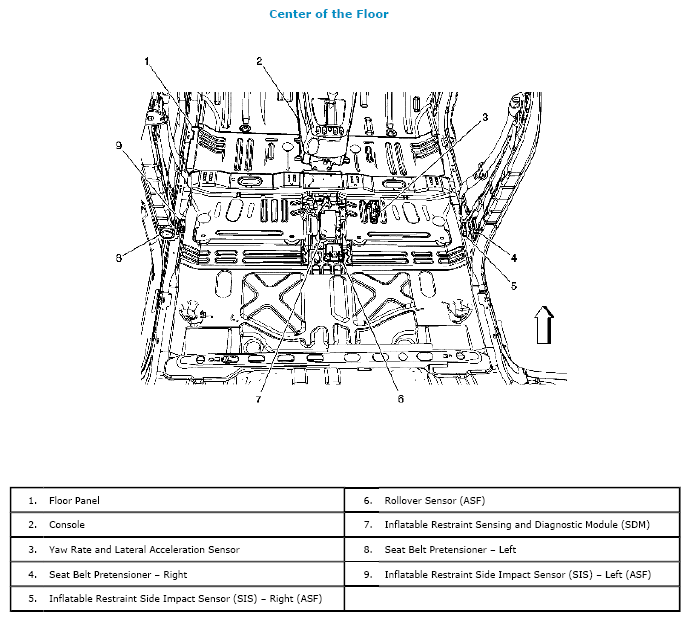

Fig 5: Identifying Floor Center Components

G04844112

Courtesy of SUZUKI OF AMERICA CORP.

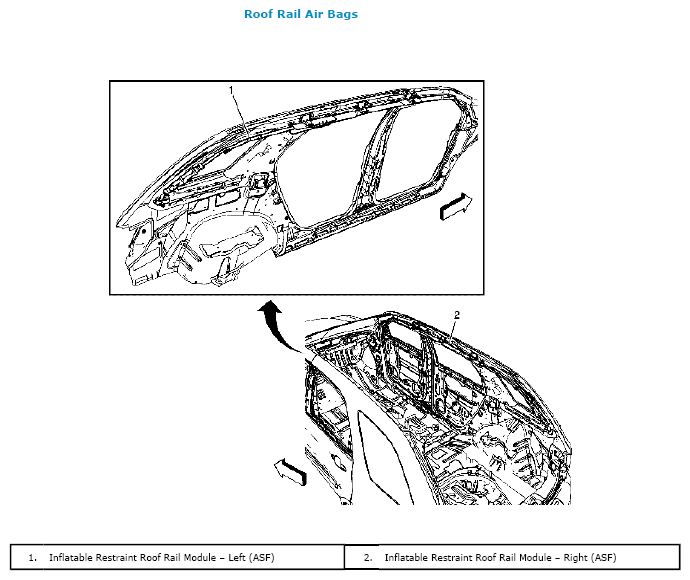

Fig 6: Identifying Inflatable Restraint Roof Rail Module - Left & Right (ASF)

G04844113

Courtesy of SUZUKI OF AMERICA CORP.
