Fuse Panel Identification (1986-89)
›
Notes
Fuse Panel Identification (1986-89): Notes

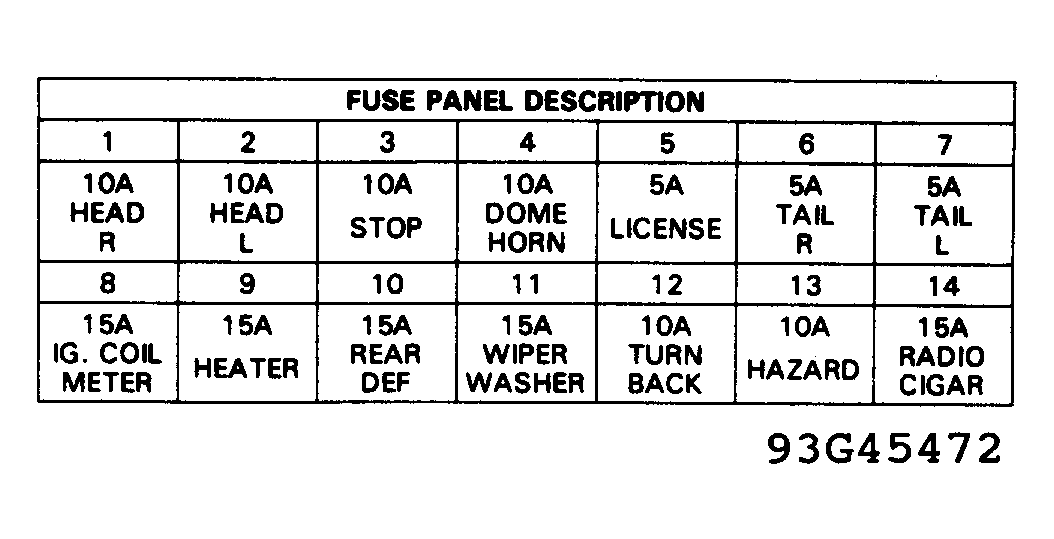

Fig 1: Fuse Panel Identification (1986-89)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
