System Diagrams: PORSCHE

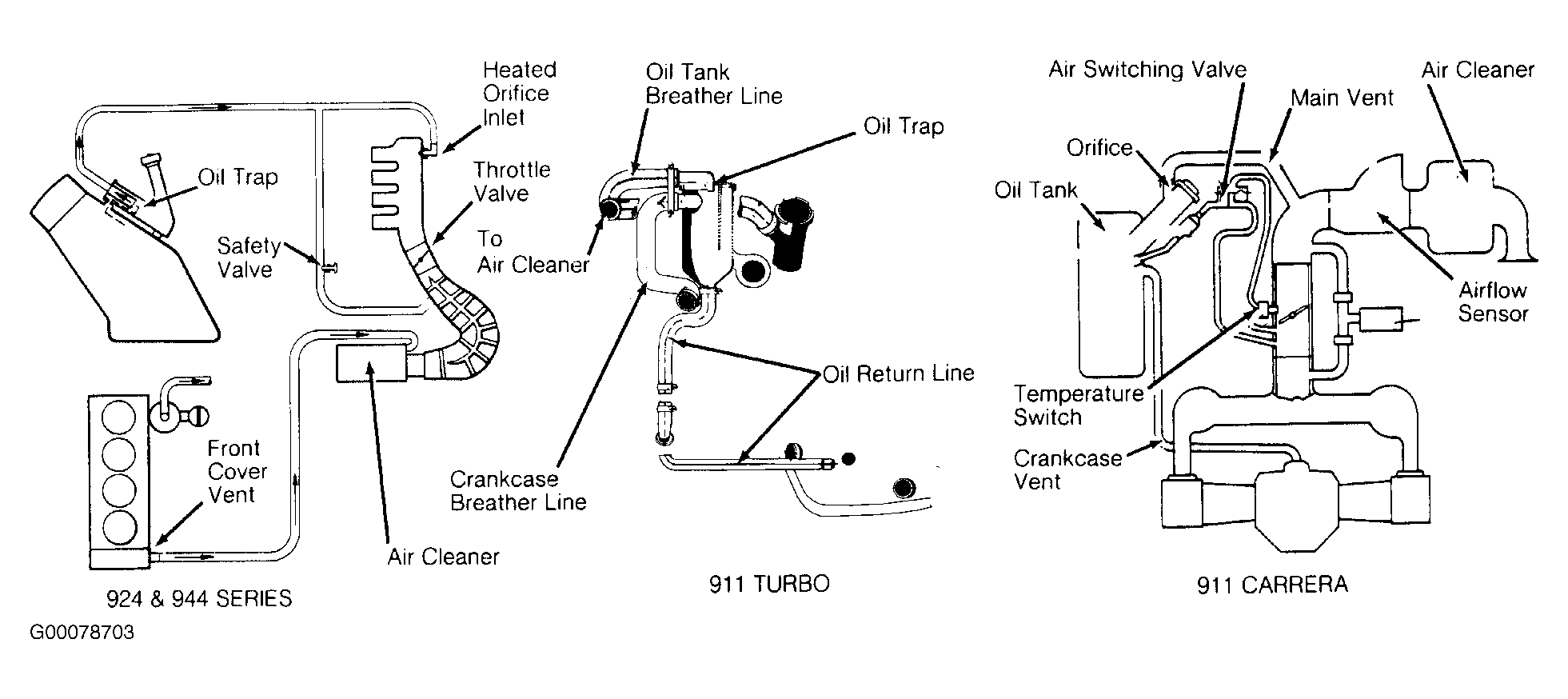

Fig 1: Crankcase Ventilation System (Porsche)

G00078703

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
