Removal & Installation

Ensure crankshaft is at 10 degrees BTDC on compression stroke. Remove distributor cap. Remove distributor hold-down bolt and lift out distributor.
When installing distributor, use Fig 1 as a guide.

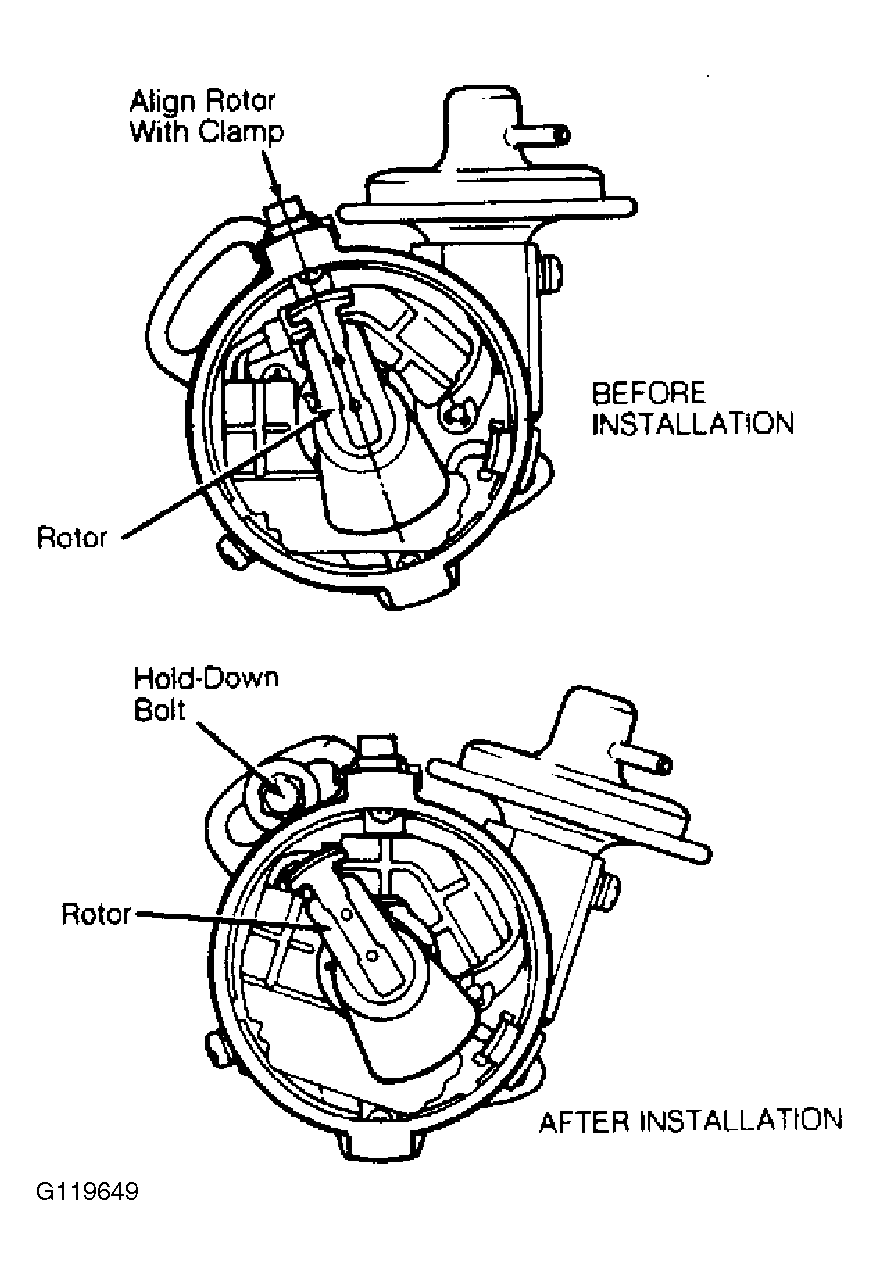

Fig 1: Installing Distributor

Courtesy of SUZUKI OF AMERICA CORP.
