Component Locations

For component locations, see Fig 1 .

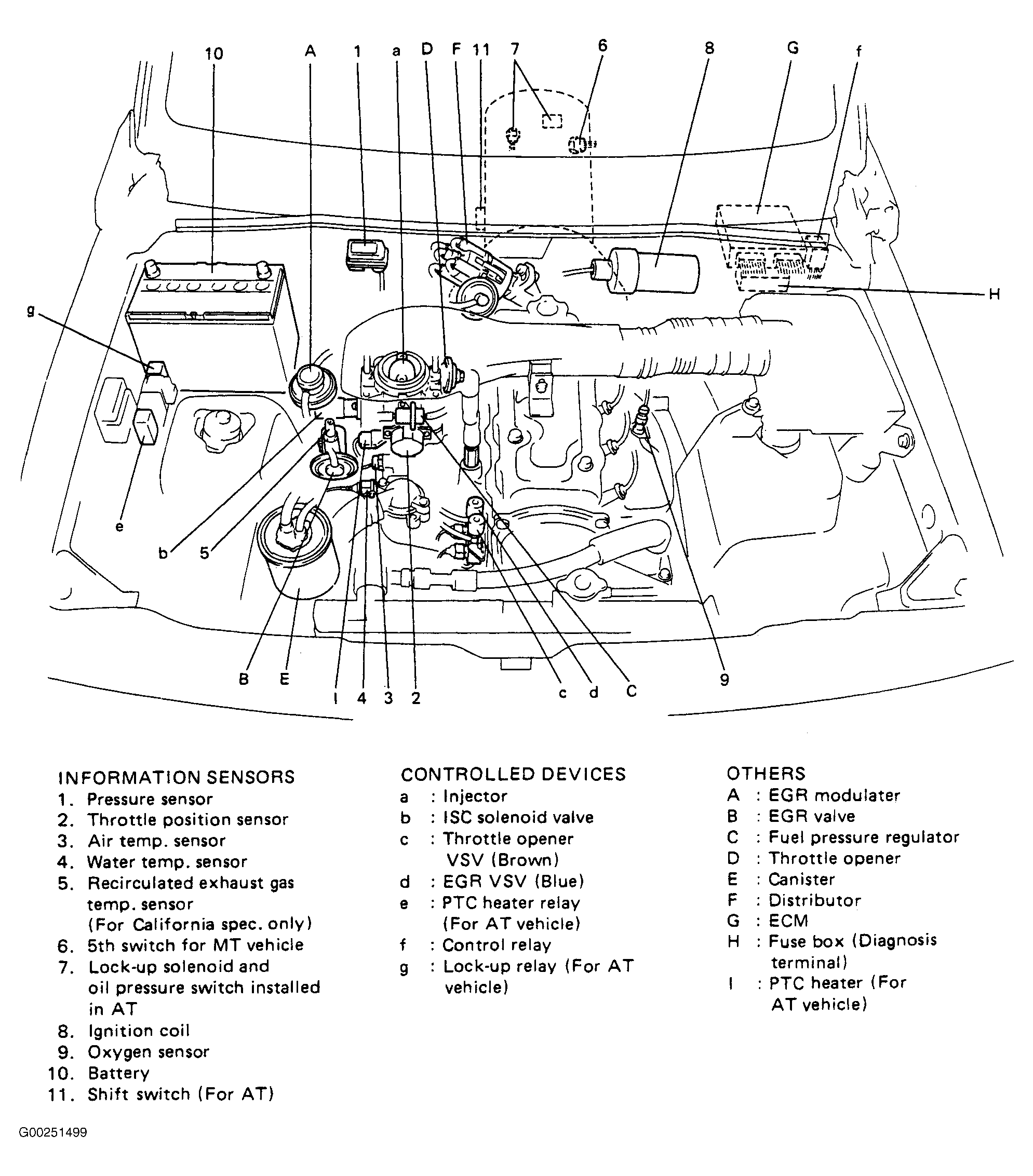

Fig 1: Identifying Component Locations (Sidekick)
G00251499Courtesy of SUZUKI OF AMERICA CORP.
