Code 24 - Vehicle Speed Sensor

Fig 1: Code 24 Schematic, Vehicle Speed Sensor

Courtesy of SUZUKI OF AMERICA CORP.

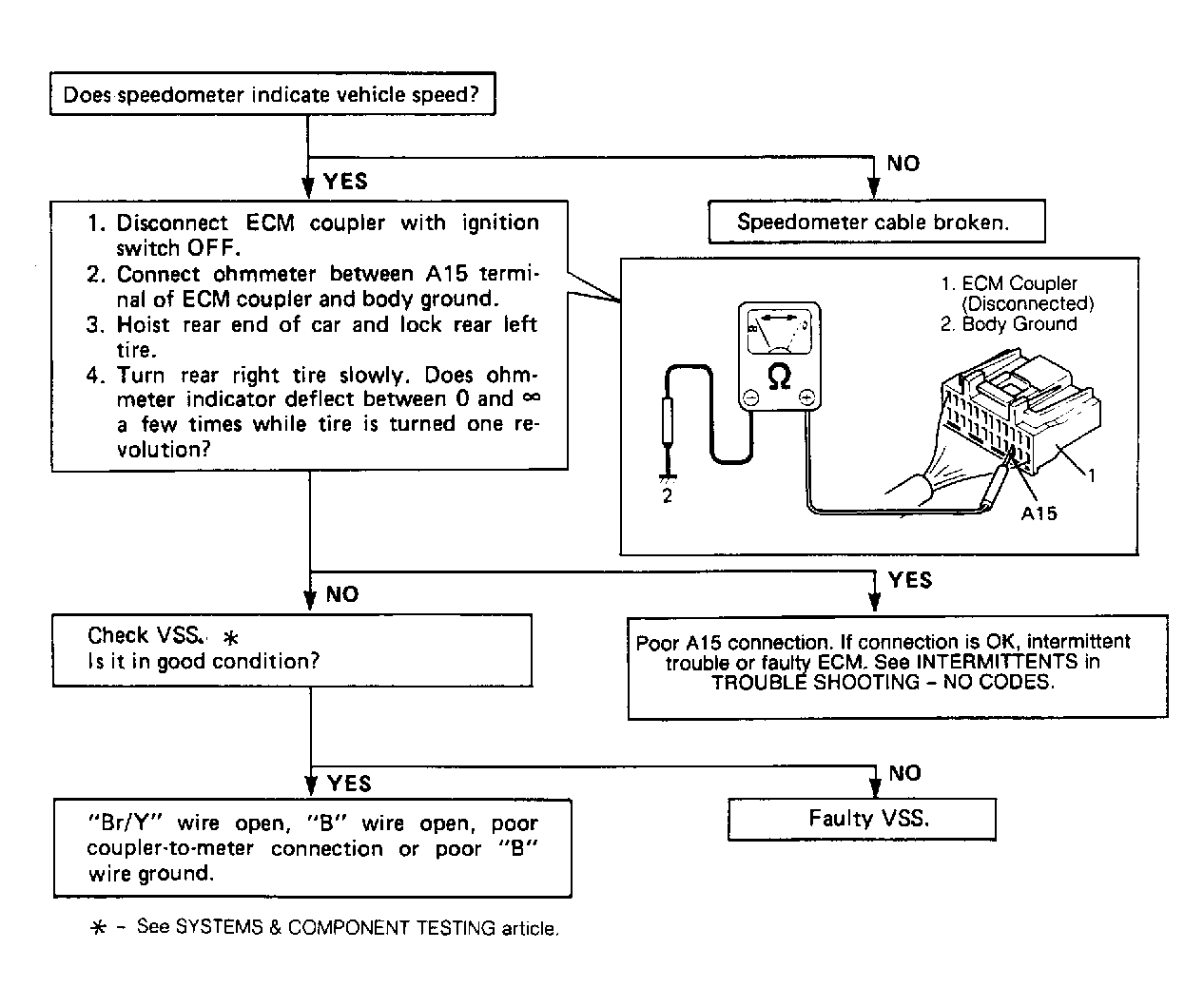

Fig 2: Code 24 Flow Chart, Vehicle Speed Sensor

Courtesy of SUZUKI OF AMERICA CORP.
