Code 41 - No Ignition Signal
Code 41 - No Ignition Signal

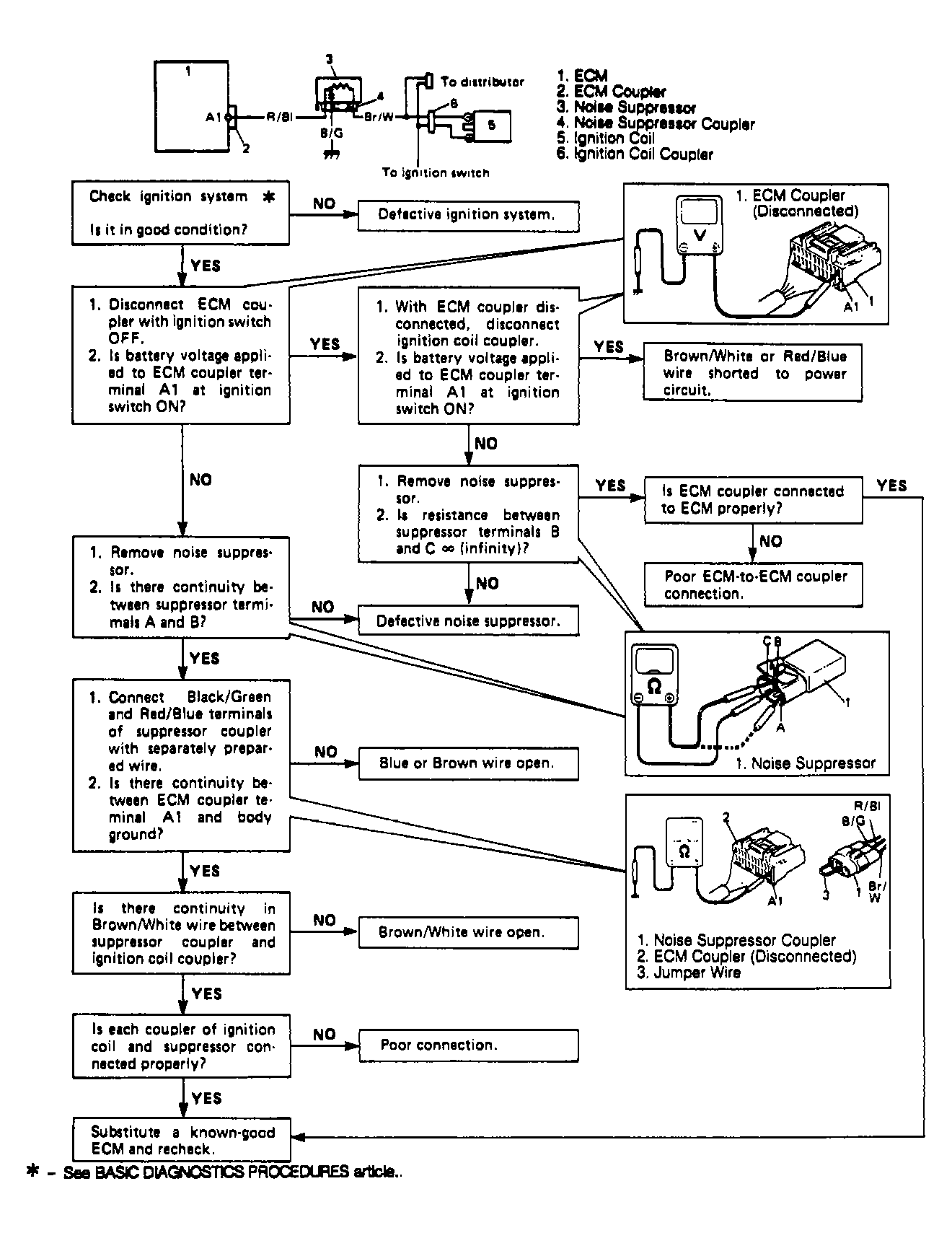

Fig 1: Code 41 Circuit Diagram & Flow Chart
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
