Wiring Diagrams

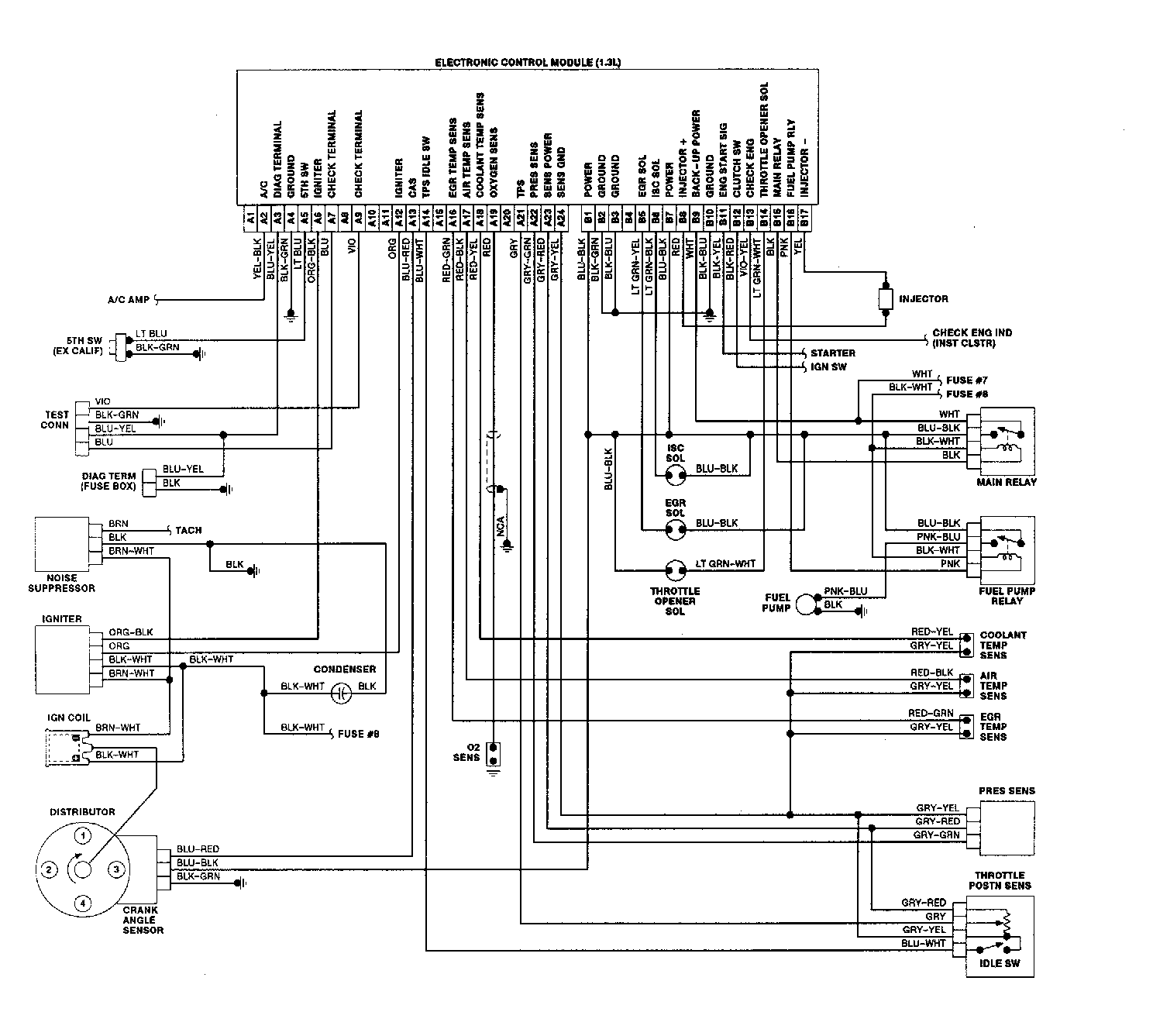

Fig 1: Wiring Diagram (Samurai 1.3L)

G91B18003

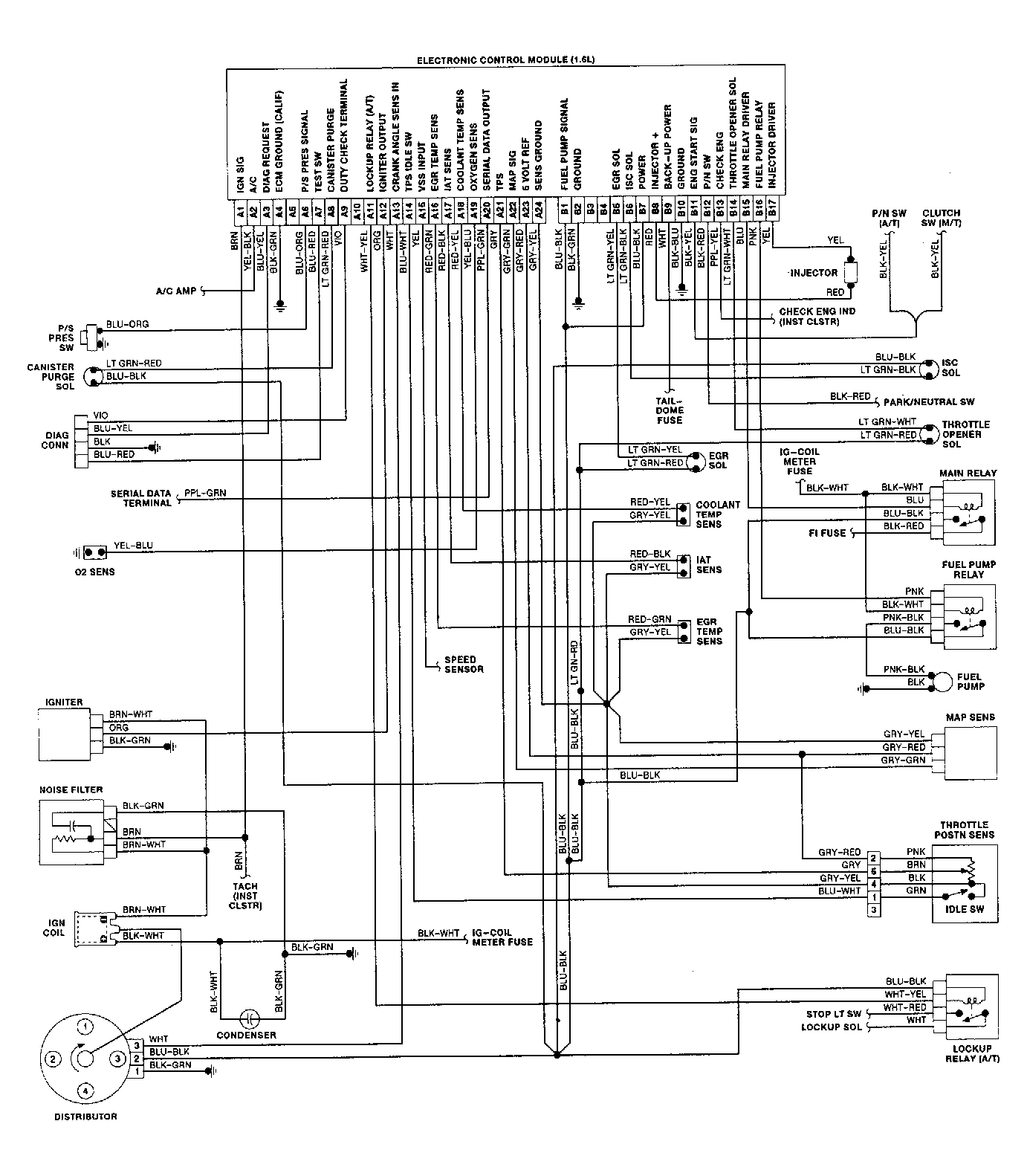

Fig 2: Wiring Diagram (Sidekick 1.6L)

G91C18004

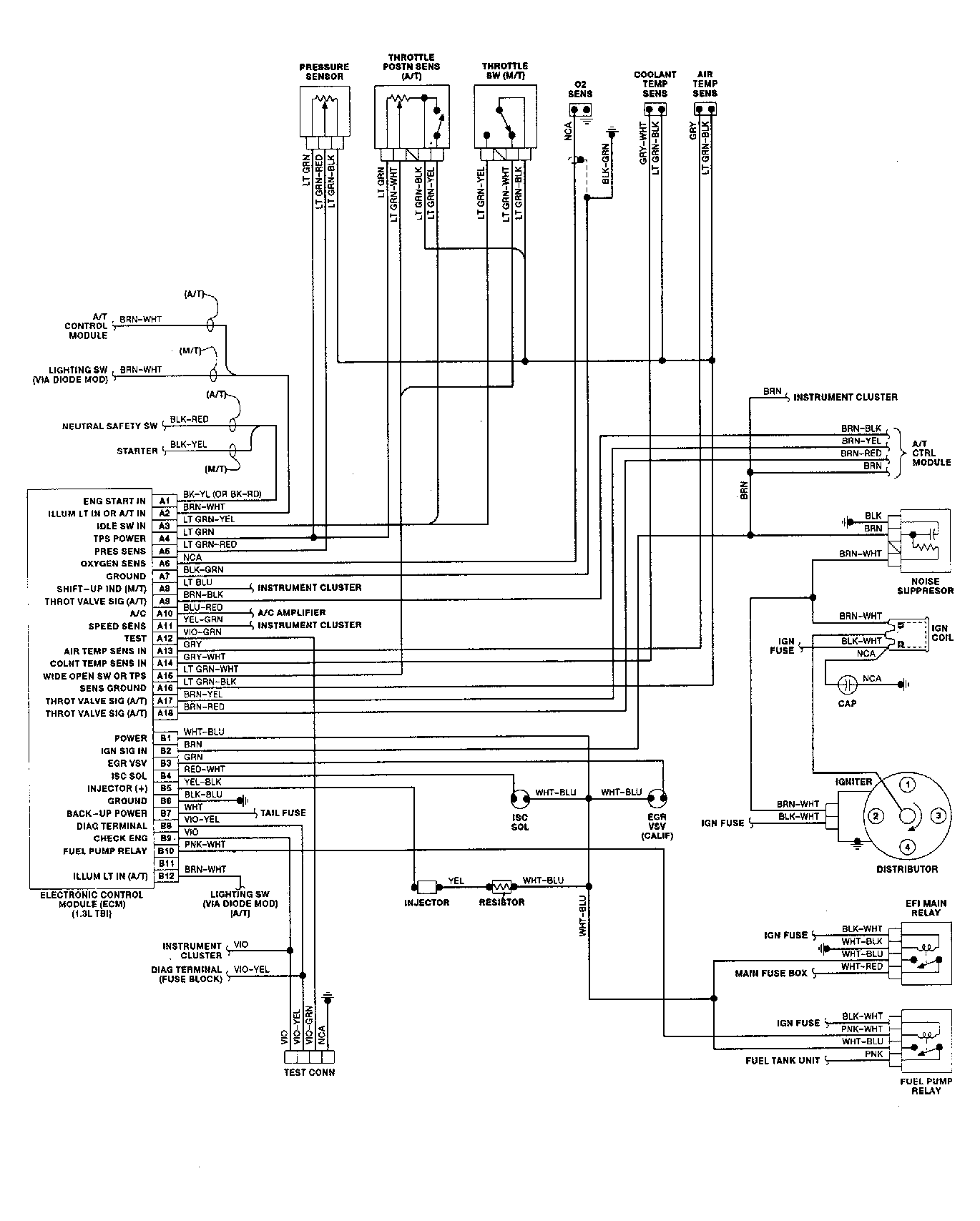

Fig 3: Wiring Diagram (Swift 1.3L SOHC TBI)

G91D18005

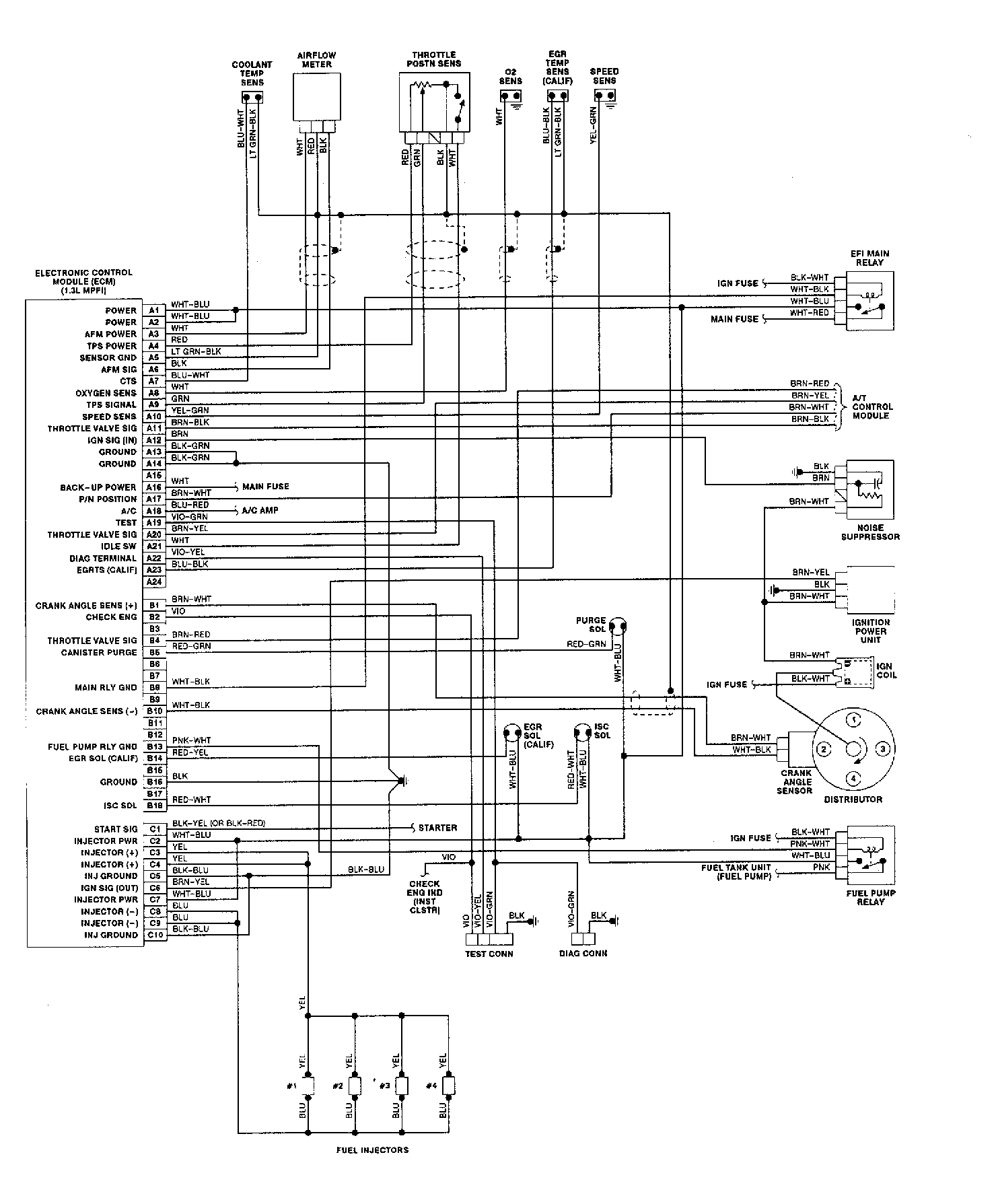

Fig 4: Wiring Diagram (Swift 1.3L DOHC 16-Valve PFI)

G91E18006
