Code 44 - Idle Switch Circuit Open Or MISADJUSTED

Fig 1: Code 44 Schematic, Idle Switch Ckt.-Open or Misadjusted

Courtesy of SUZUKI OF AMERICA CORP.

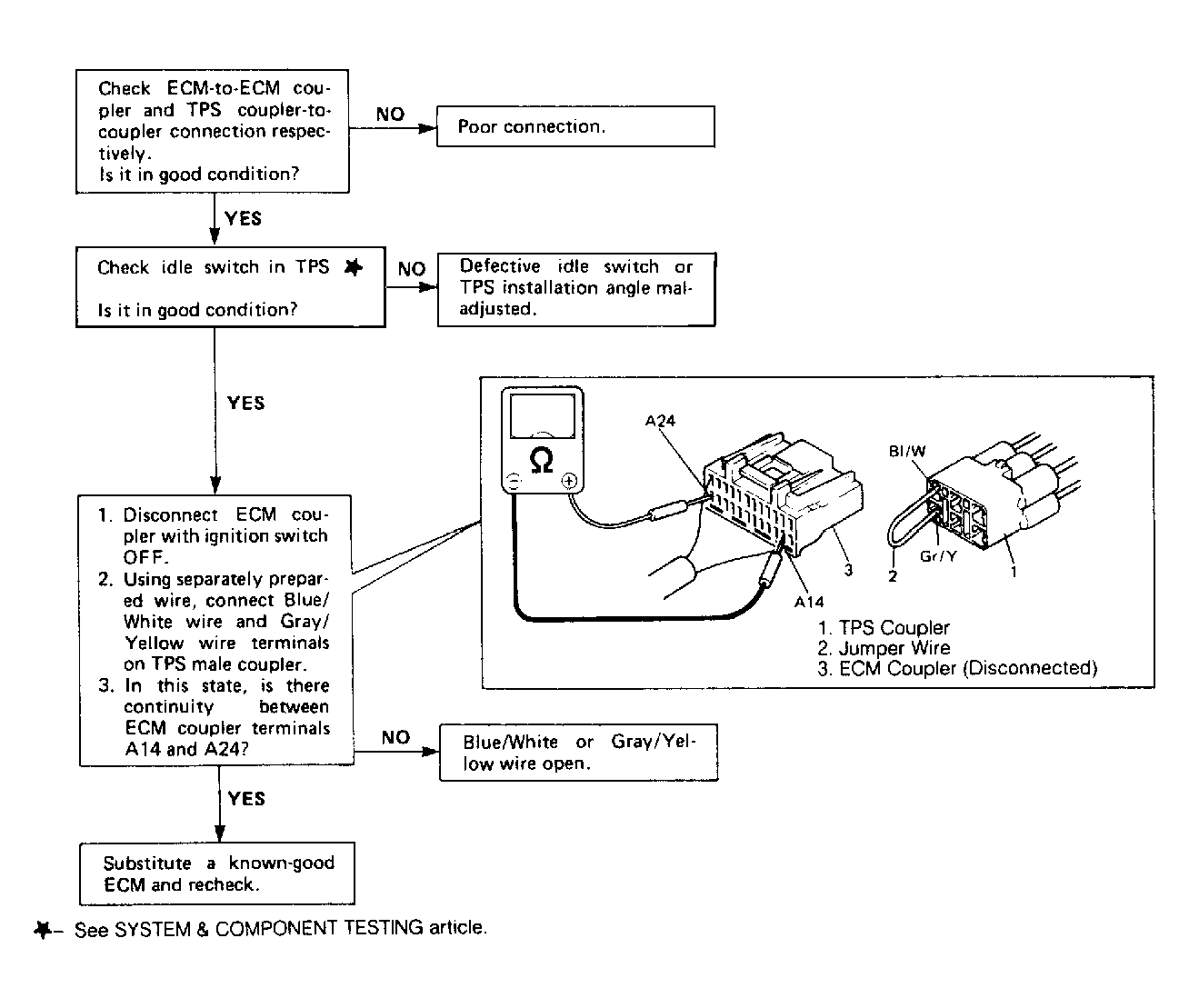

Fig 2: Code 44 Flow Chart, Idle Switch Ckt.-Open or Misadjusted

Courtesy of SUZUKI OF AMERICA CORP.
