Code 45 - Idle Switch Circuit Shorted Or MISADJUSTED

Fig 1: Code 45 Schematic, Idle Switch Ckt.-Shorted or Misadjusted

Courtesy of SUZUKI OF AMERICA CORP.

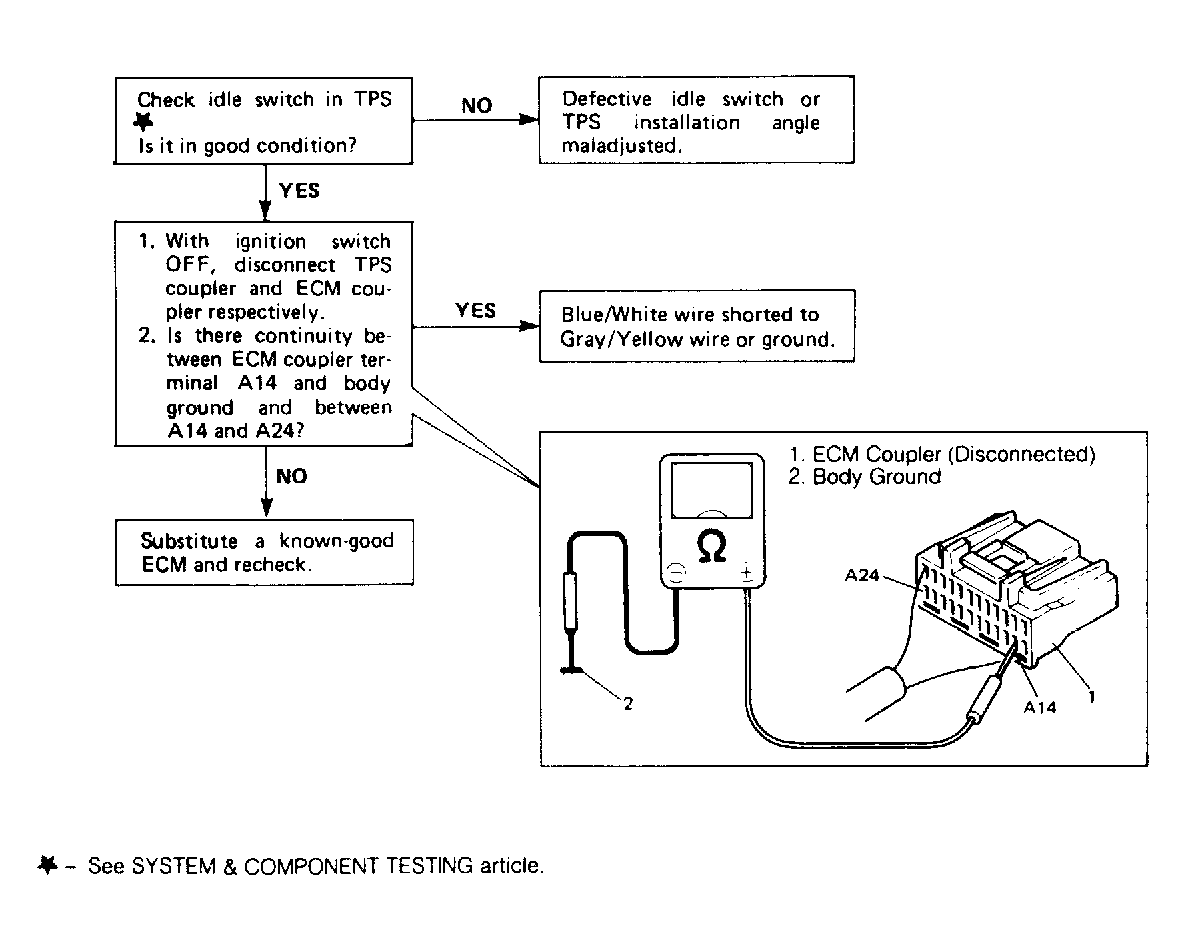

Fig 2: Code 45 Flow Chart, Idle Switch Ckt.-Shorted or Misadjusted

Courtesy of SUZUKI OF AMERICA CORP.
