Ignition System: Distributor: Overhaul

See Fig 1 and Fig 2 .

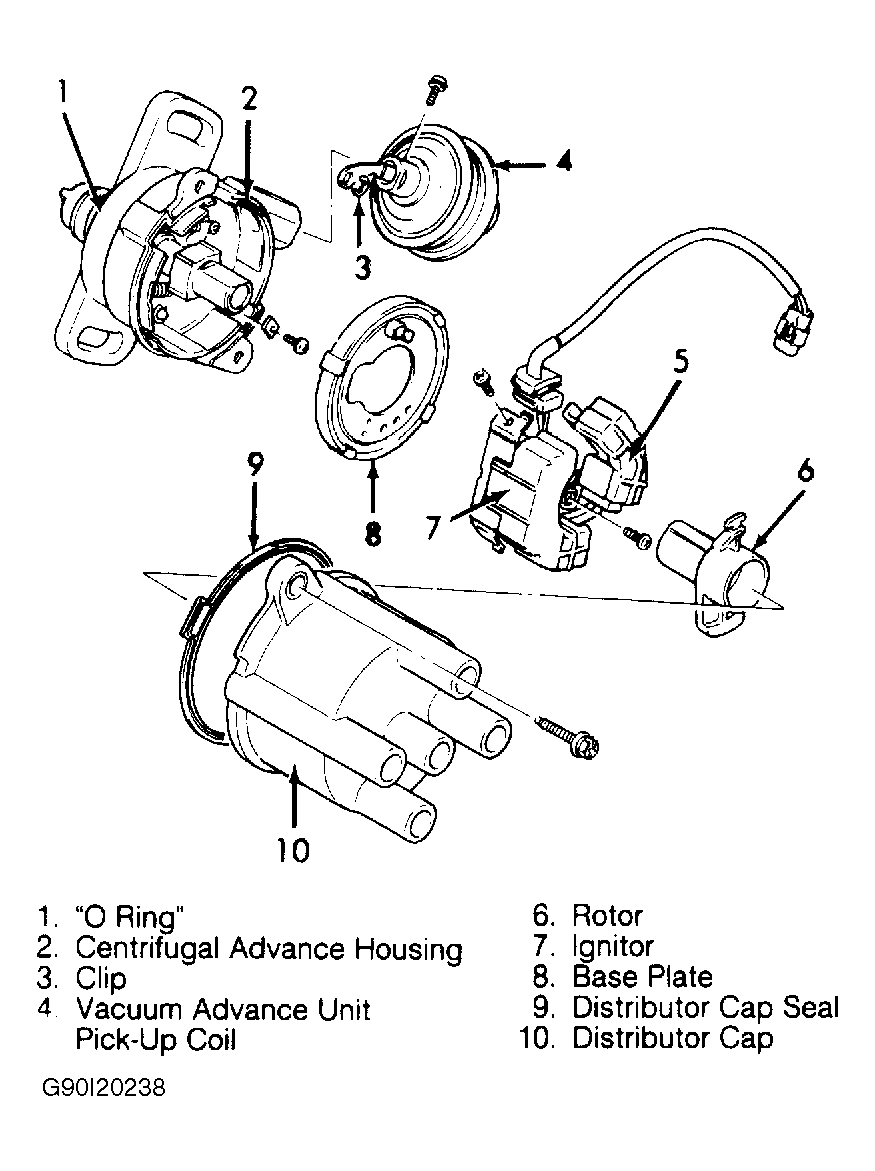

Fig 1: Exploded View of Distributor (Swift DOHC)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: Exploded View of Distributor (Swift SOHC)

Courtesy of SUZUKI OF AMERICA CORP.

NOTE: On Swift, distributor drive coupling and camshaft slot are offset. Distributor cannot be installed backward.
