Throttle Opener System: Notes

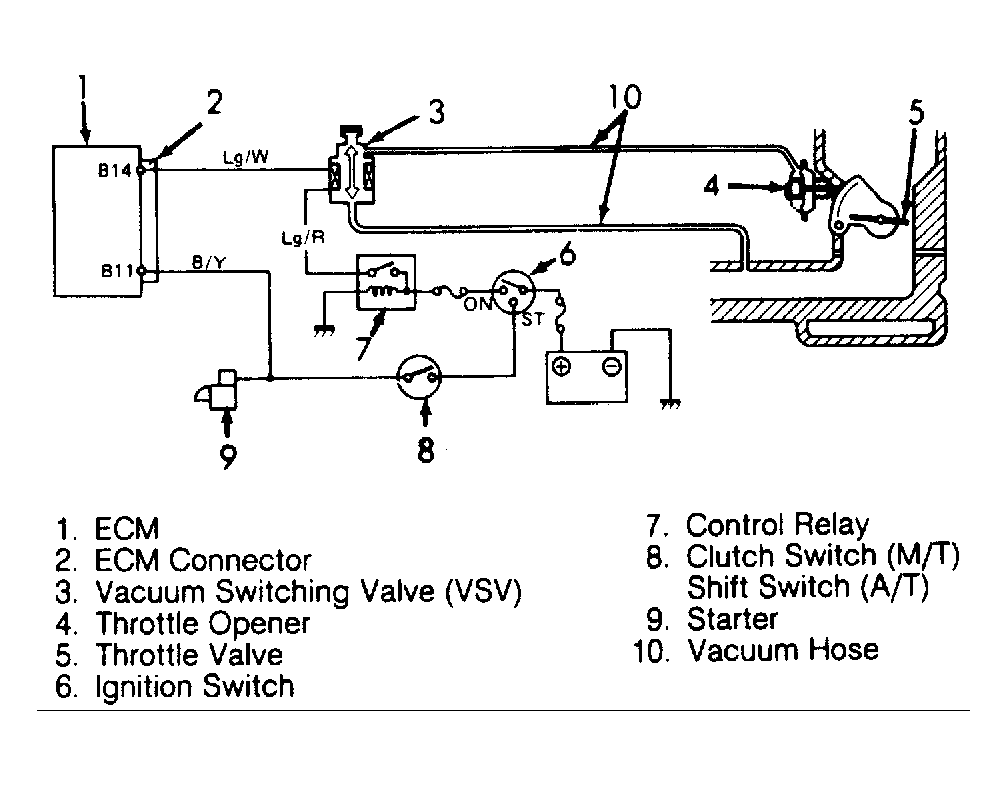

NOTE: For throttle opener system vacuum and wiring schematic, see Figure .
