Code 15 - Coolant Temperature Sensor (Cts) Indication High

Fig 1: Code 15 Schematic, Coolant Temp Sens (CTS)-Indication High

Courtesy of SUZUKI OF AMERICA CORP.

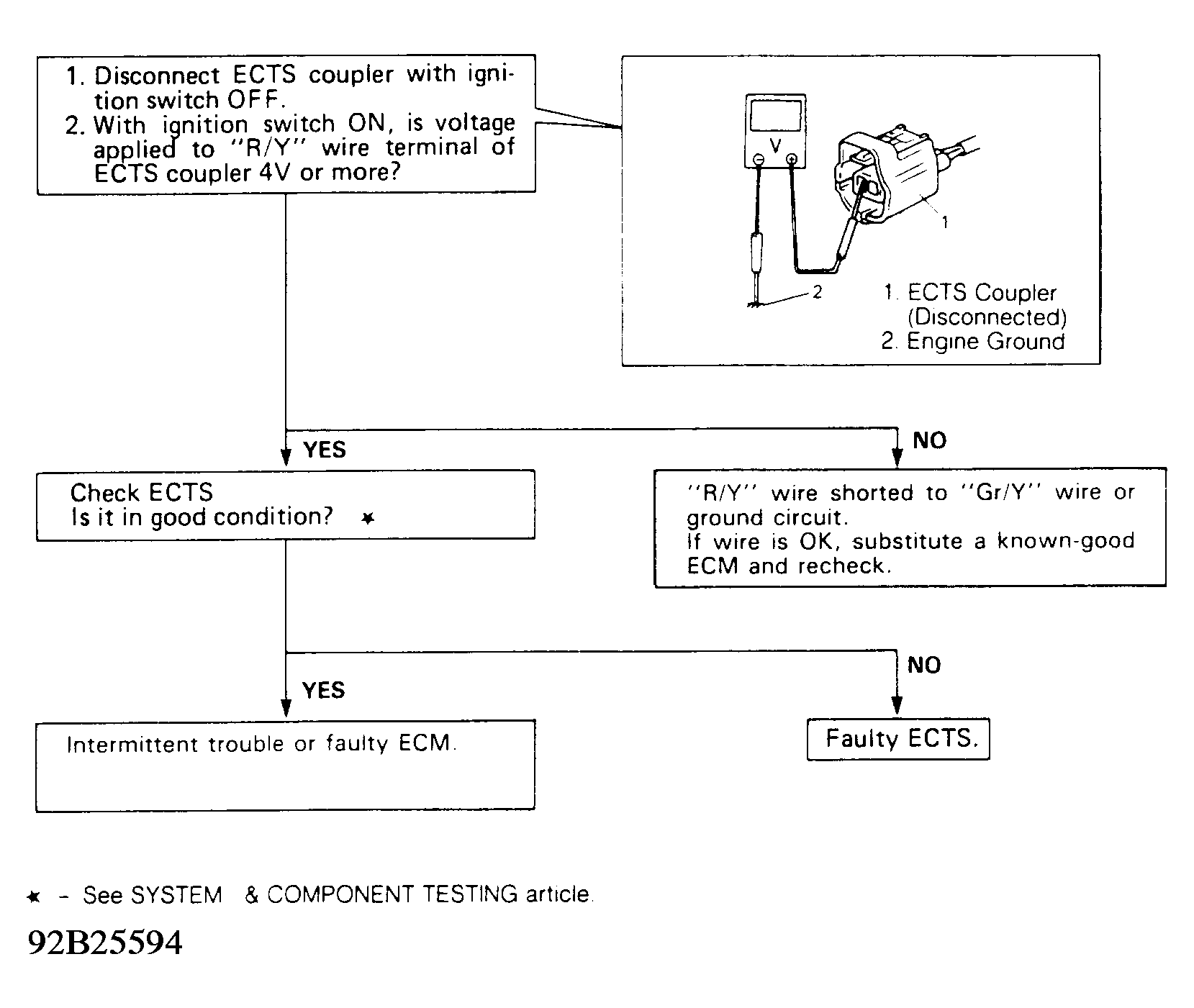

Fig 2: Code 15 Flow Chart, Coolant Temp Sens (CTS)-Indication High

Courtesy of SUZUKI OF AMERICA CORP.
