Code 22 - Throttle Position Sensor Circuit Indication Low

Fig 1: Code 22 Schematic, TPS Ckt. - Indication Low

Courtesy of SUZUKI OF AMERICA CORP.

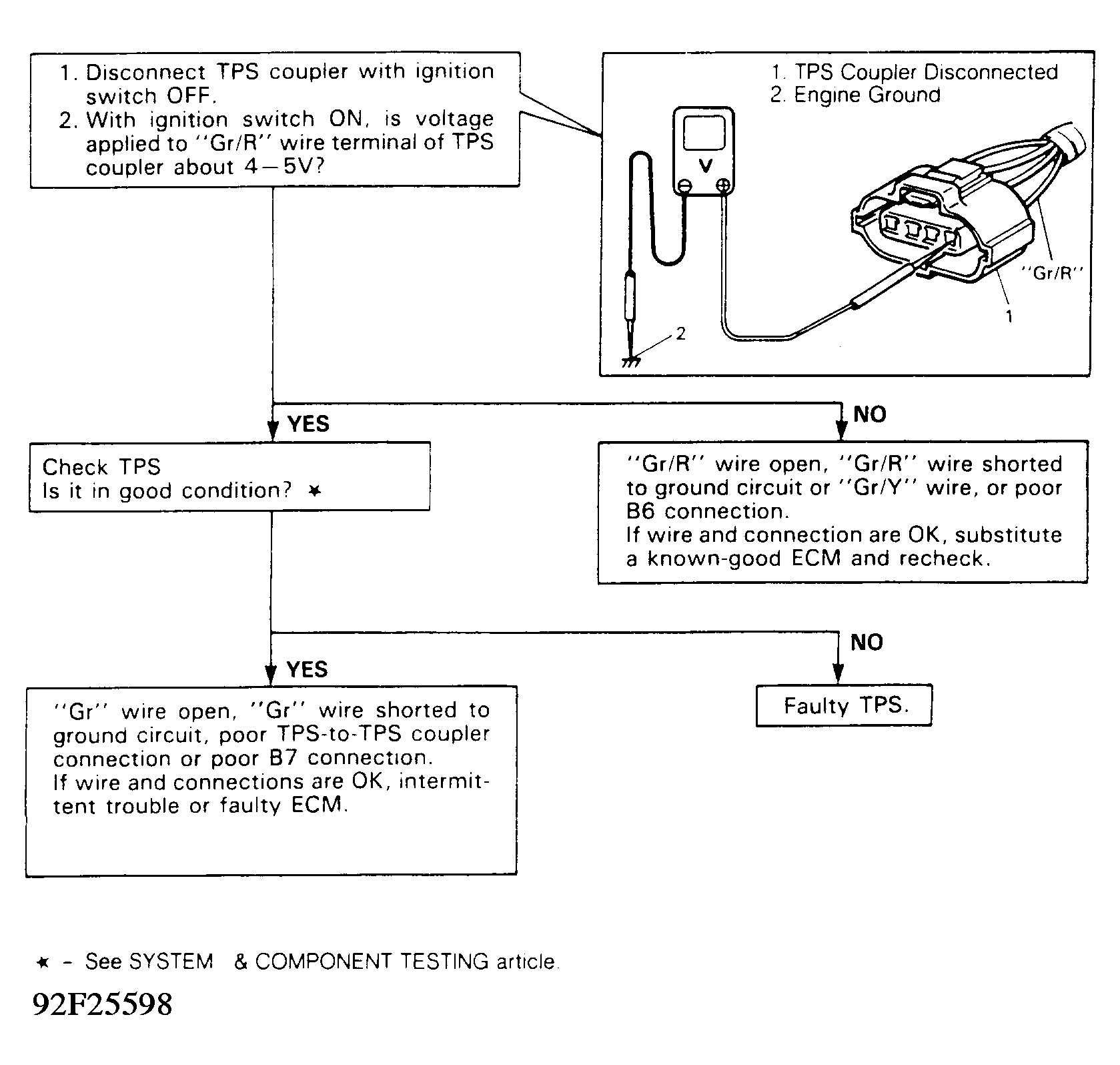

Fig 2: Code 22 Flow Chart, TPS Ckt. - Indication Low

Courtesy of SUZUKI OF AMERICA CORP.
