Code 25 - Air Temp Sensor (ATS) Circuit Indication High

Fig 1: Code 25 Schematic, Air Temp. Sensor Ckt.-Indication High

Courtesy of SUZUKI OF AMERICA CORP.

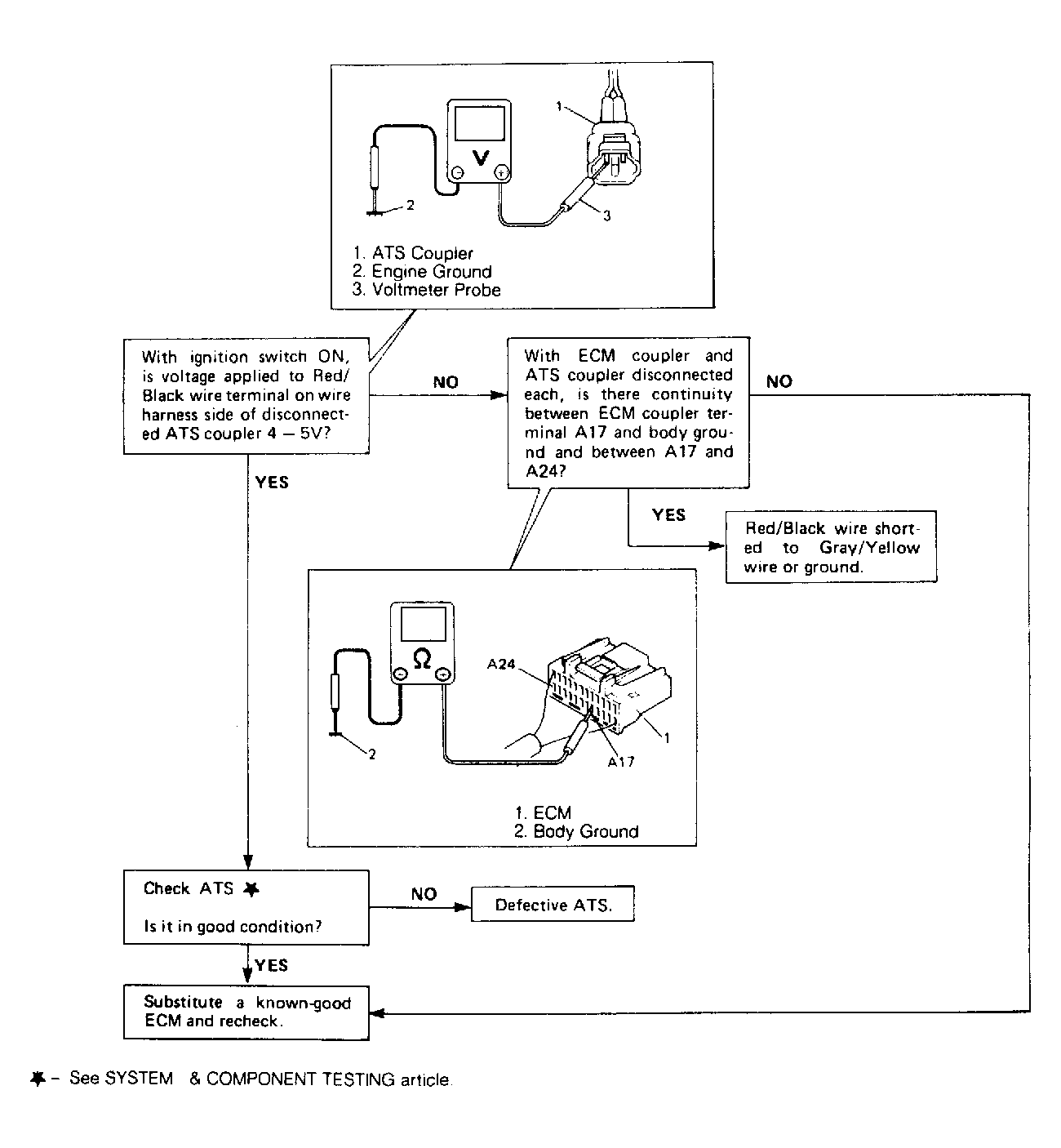

Fig 2: Code 25 Flow Chart, Air Temp. Sensor Ckt.-Indication High

Courtesy of SUZUKI OF AMERICA CORP.
