Vehicle Speed Sensor (VSS)

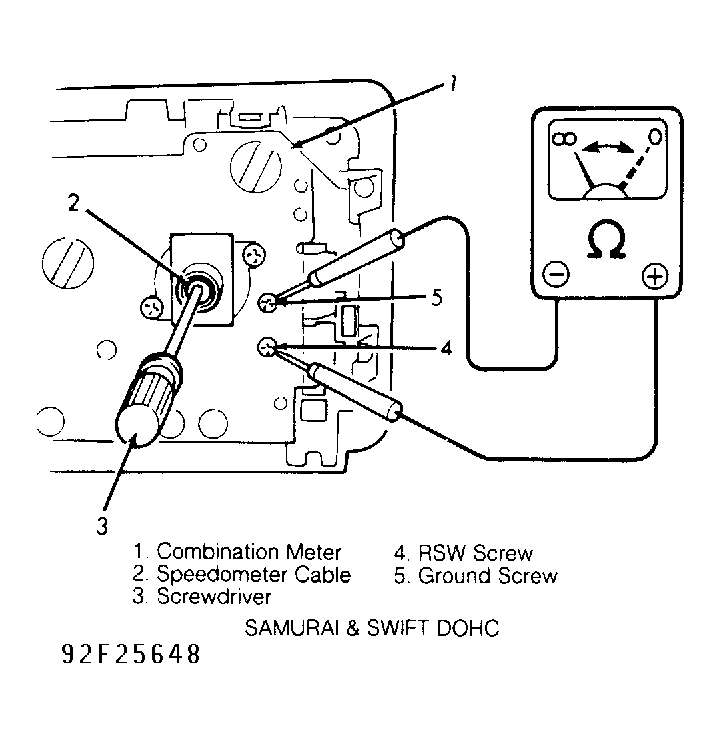

- Disconnect negative battery cable. Remove instrument cluster. Connect ohmmeter between RSW and GND terminals on back of instrument cluster. Insert screwdriver into speedometer cable connector; rotate screwdriver. See Fig 1 or Fig 2.
- Ohmmeter reading should alternate between zero and infinity 4 times for each revolution of speedometer cable. Replace speedometer if VSS does not test as described.
