Code 24 - Speed Sensor Circuit Check

NOTE: Ignition must be off before checking VSS.

Fig 1: Code 24 Schematic, Speed Sensor Circuit

Courtesy of SUZUKI OF AMERICA CORP.

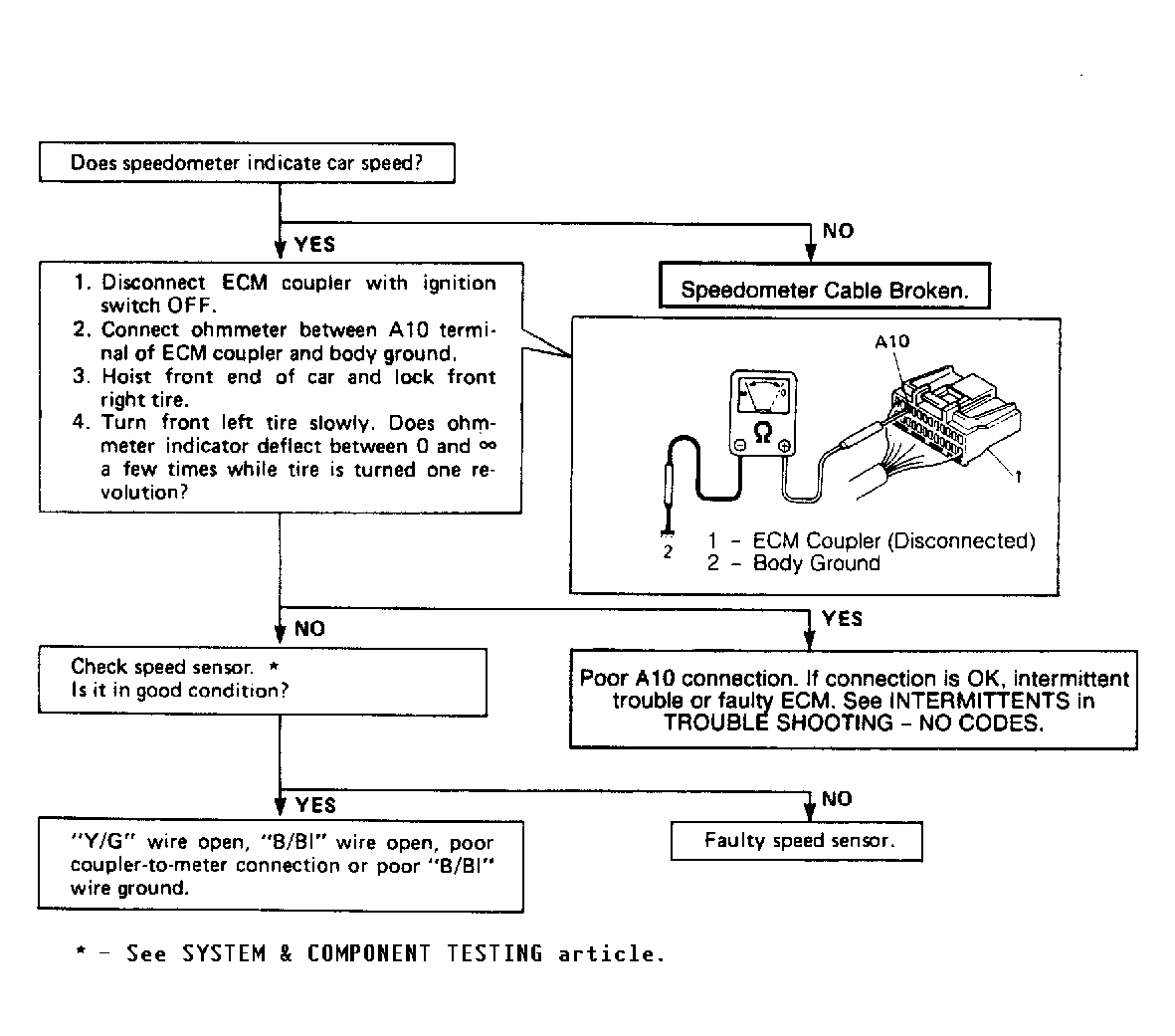

Fig 2: Code 24 Flow Chart, Speed Sensor Circuit

Courtesy of SUZUKI OF AMERICA CORP.
