Code 42 - Crank Angle Sensor (CAS) Circuit Check

Fig 1: Code 42 Schematic, Crank Angle Sensor Circuit

Courtesy of SUZUKI OF AMERICA CORP.

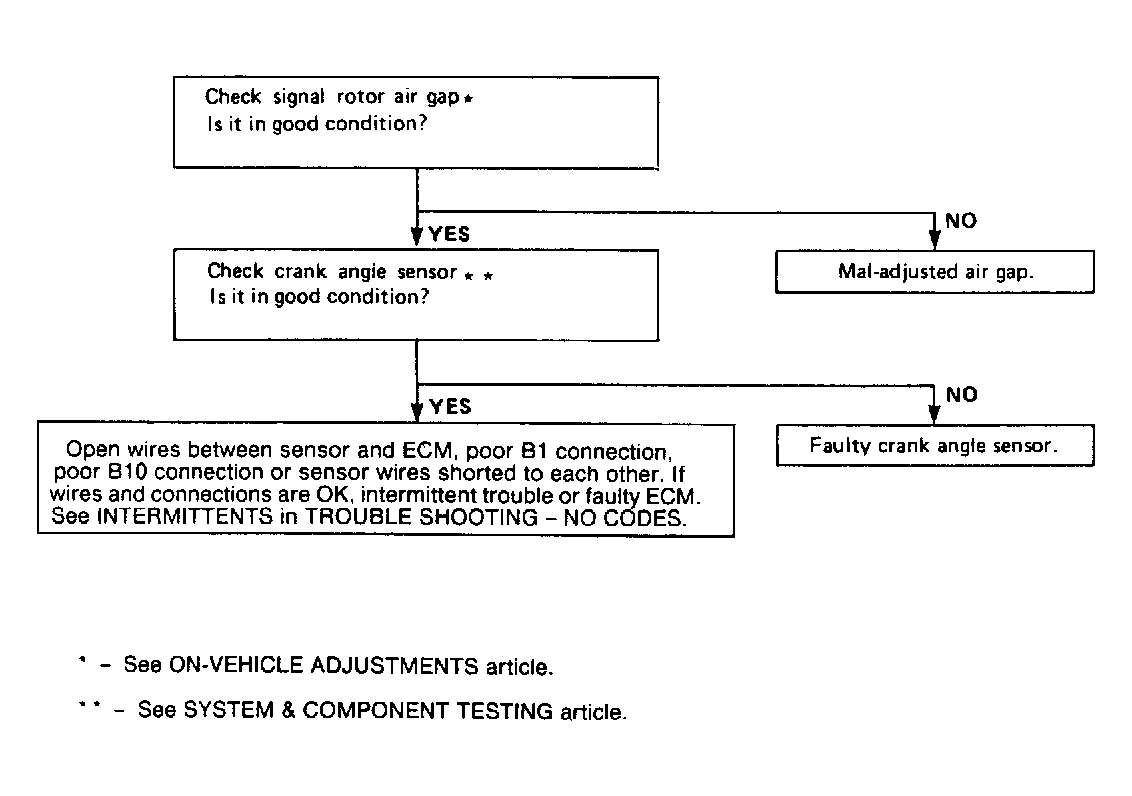

Fig 2: Code 42 Flow Chart, Crank Angle Sensor Circuit

Courtesy of SUZUKI OF AMERICA CORP.
