Code 44 - Idle Switch Circuit Open Or MISADJUSTED

Fig 1: Code 44 - Schematic

G92I25609

Courtesy of SUZUKI OF AMERICA CORP.

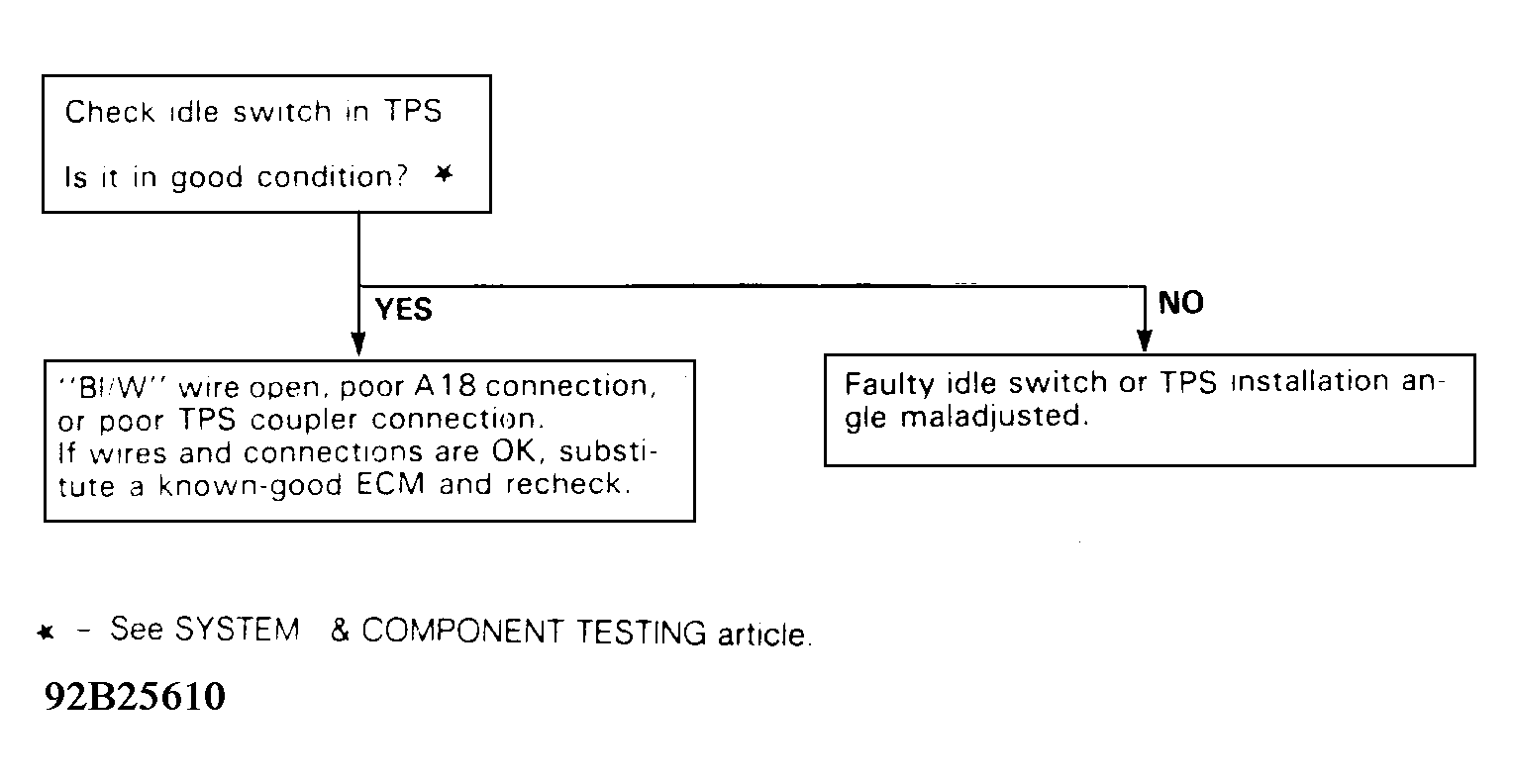

Fig 2: Code 44 - Diagnostic Flowchart

G92B25610

Courtesy of SUZUKI OF AMERICA CORP.
