Suzuki
›
1993
›
Sidekick JS, 4D Utility
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Controls - Tests W/Codes - MPI
›
Fault Code Flow Charts
›
Code 52 - Fuel System Check - CALIFORNIA MPI
Code 52 - Fuel System Check - CALIFORNIA MPI

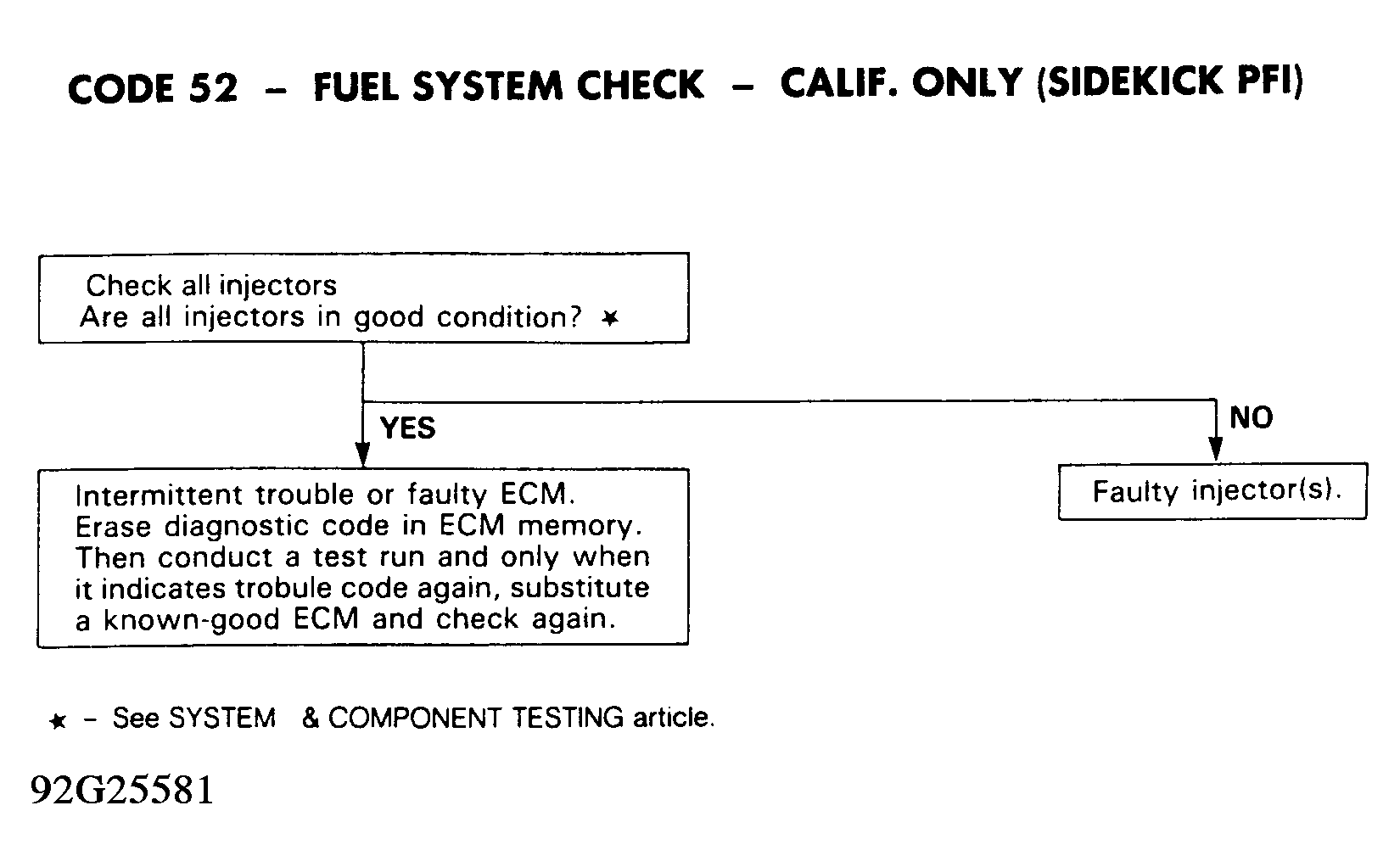

Fig 1: Code 52 - Diagnostic Flowchart
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
