Engine Controls - Tests W/Codes - DOHC
›
Diagnostic Flow Charts
›
Initial Diagnostic Procedure
Initial Diagnostic Procedure

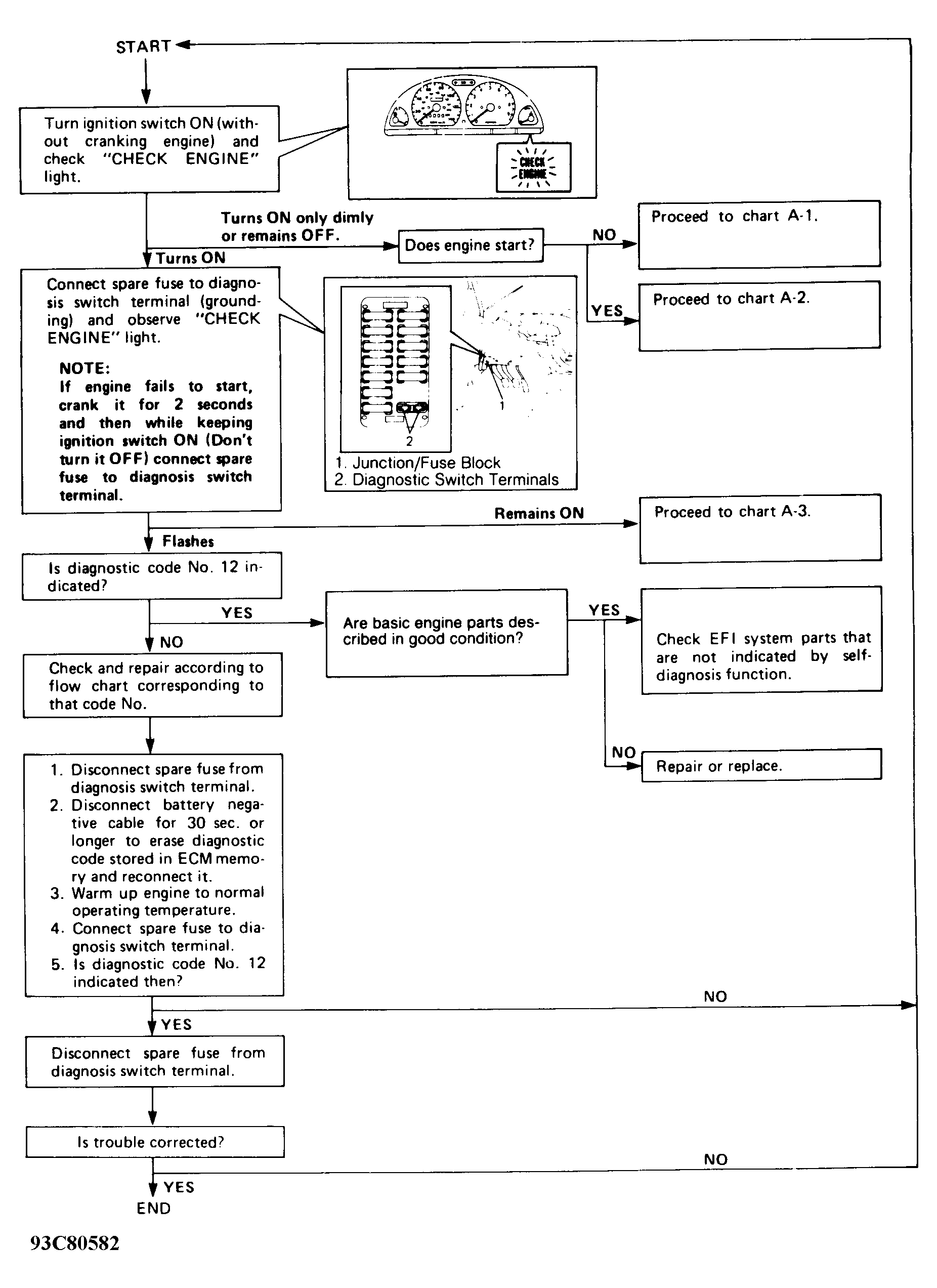

Fig 1: Initial Diagnostic Procedure (DOHC)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
