Code 25 - ATS Circuit, High Temperature Indicated
Code 25 - ATS Circuit, High Temperature Indicated
Fig 1: Code 25 - Schematic
Courtesy of SUZUKI OF AMERICA CORP.

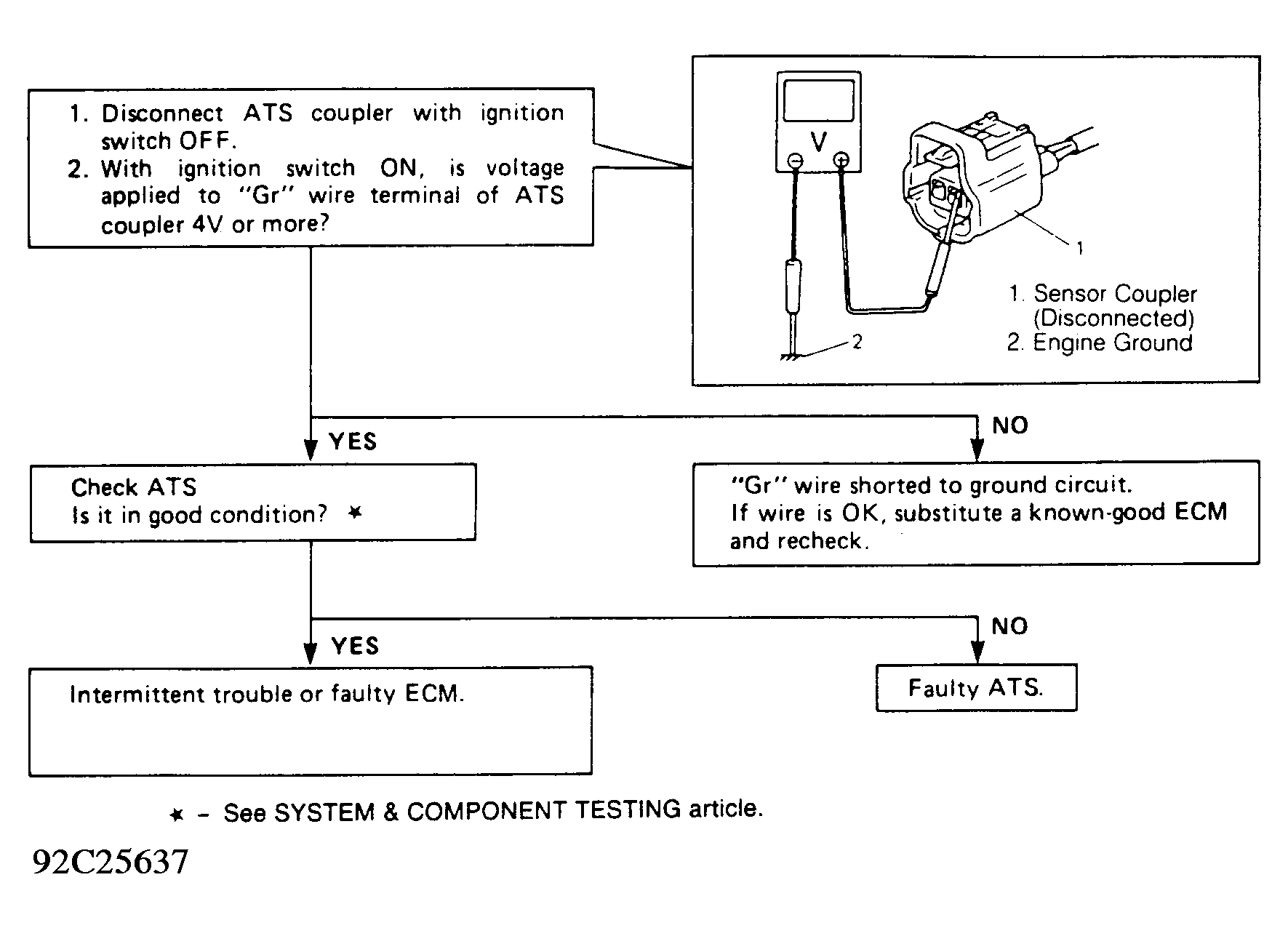

Fig 2: Code 25 - Diagnostic Flowchart
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
