Code 51 - EGR System Circuit Check - CALIFORNIA
Code 51 - EGR System Circuit Check - CALIFORNIA

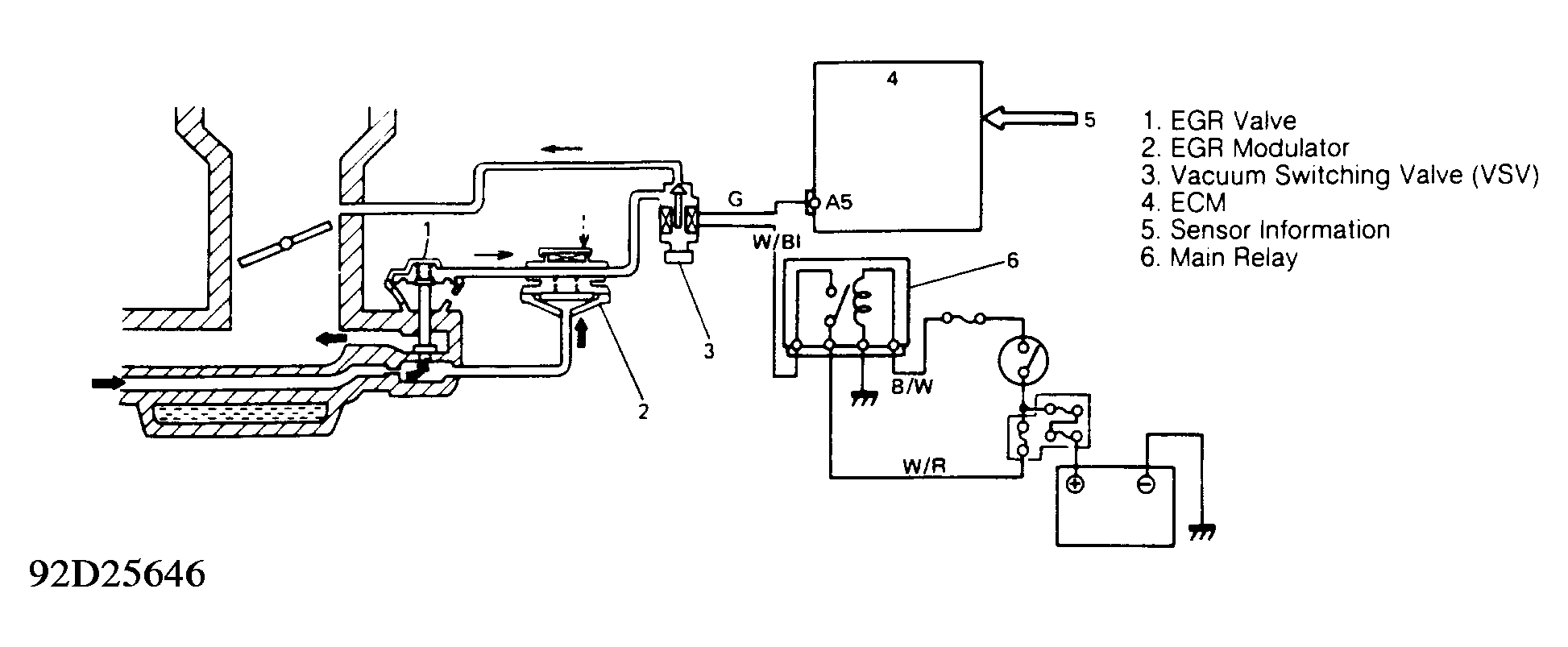

Fig 1: Code 42 - Schematic
Courtesy of SUZUKI OF AMERICA CORP.

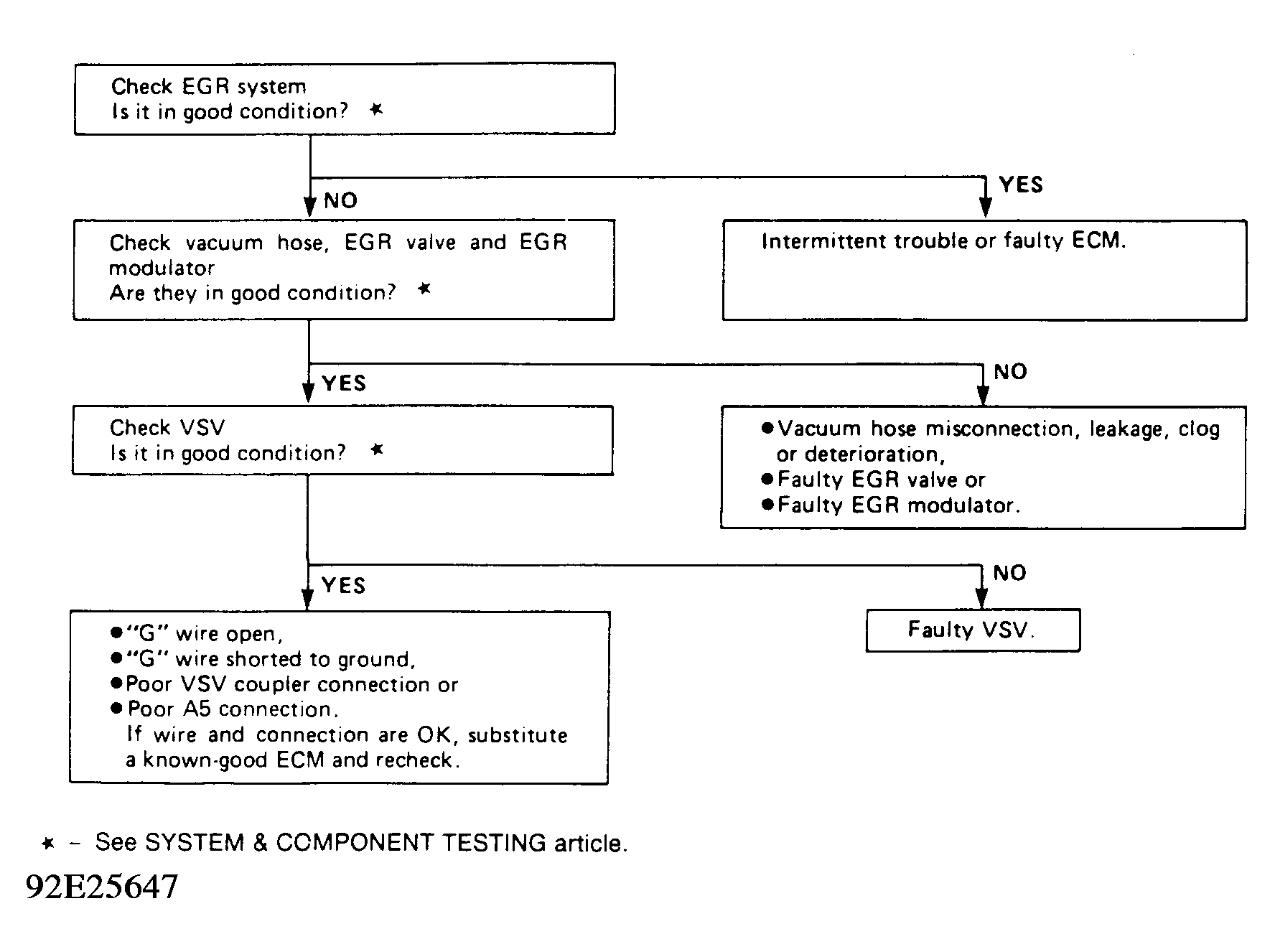

Fig 2: Code 42 - Diagnostic Flowchart
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
