Chart A-2 - Check Engine Light Inoperative

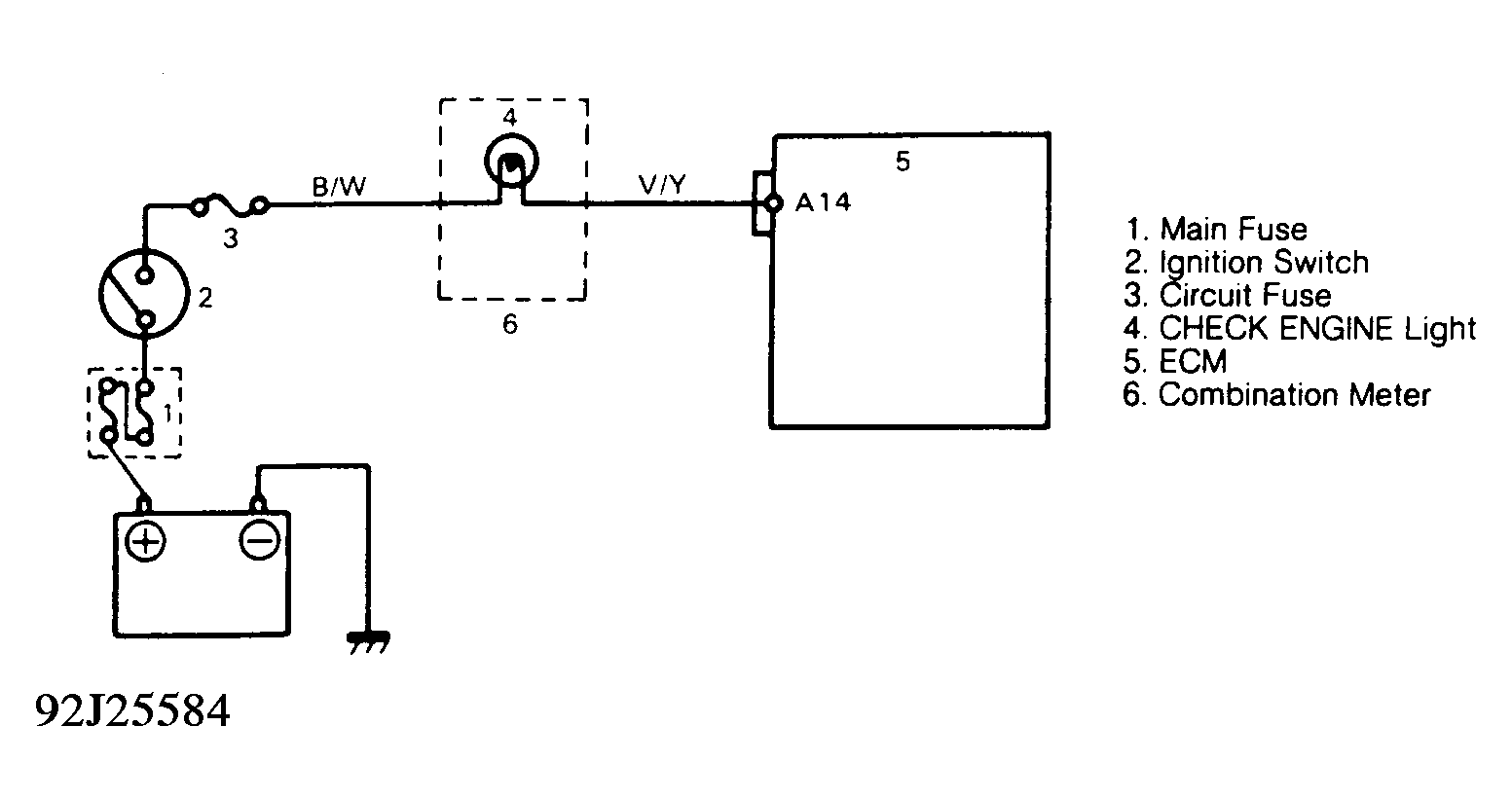

Fig 1: Chart A2, Schematic - Check Engine Light Inoperative

G92J25584

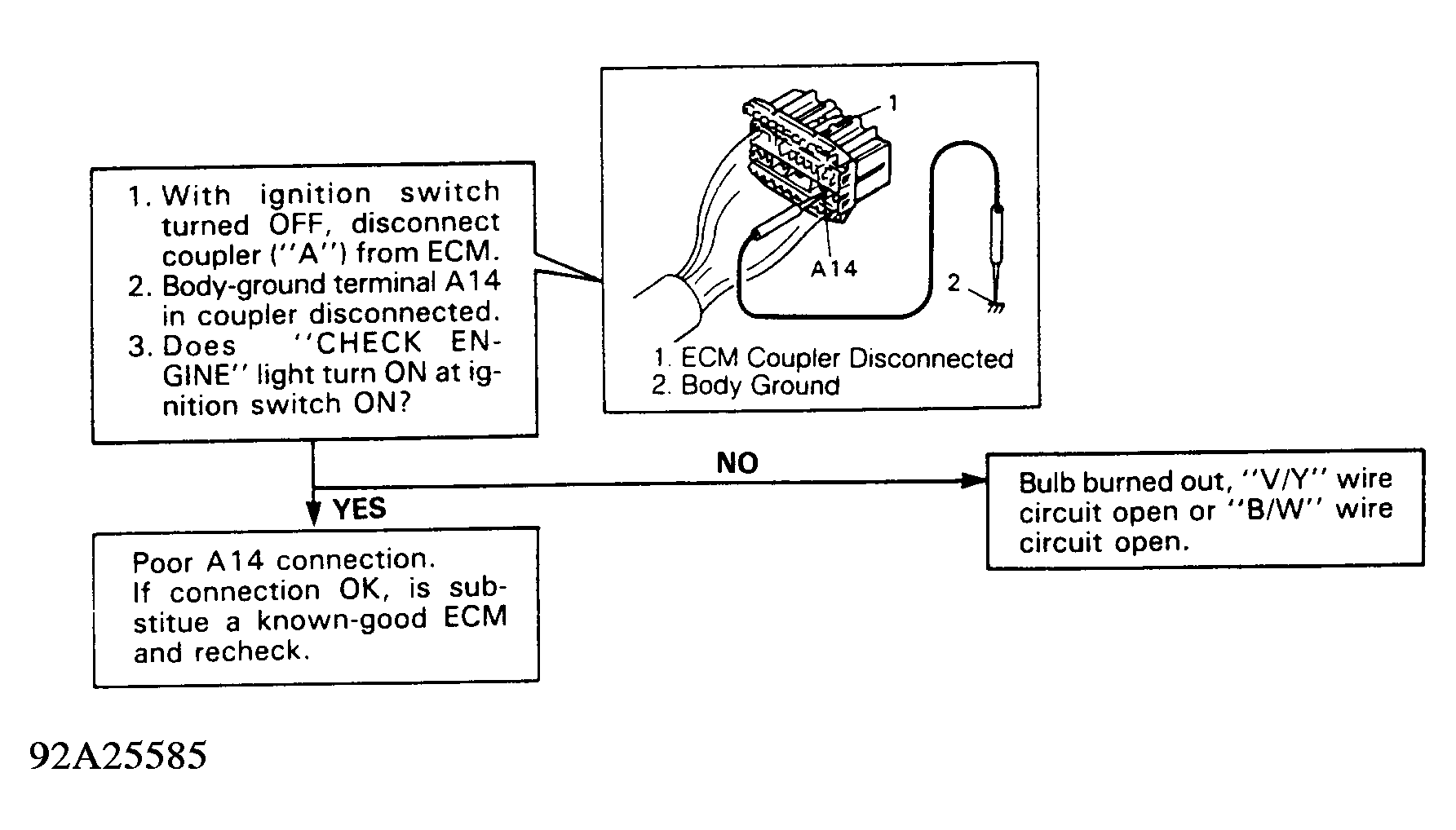

Fig 2: Chart A2, Flow Chart - Check Engine Light Inoperative

G92A25585
