Code 13 - Heated Oxygen Sensor Circuit

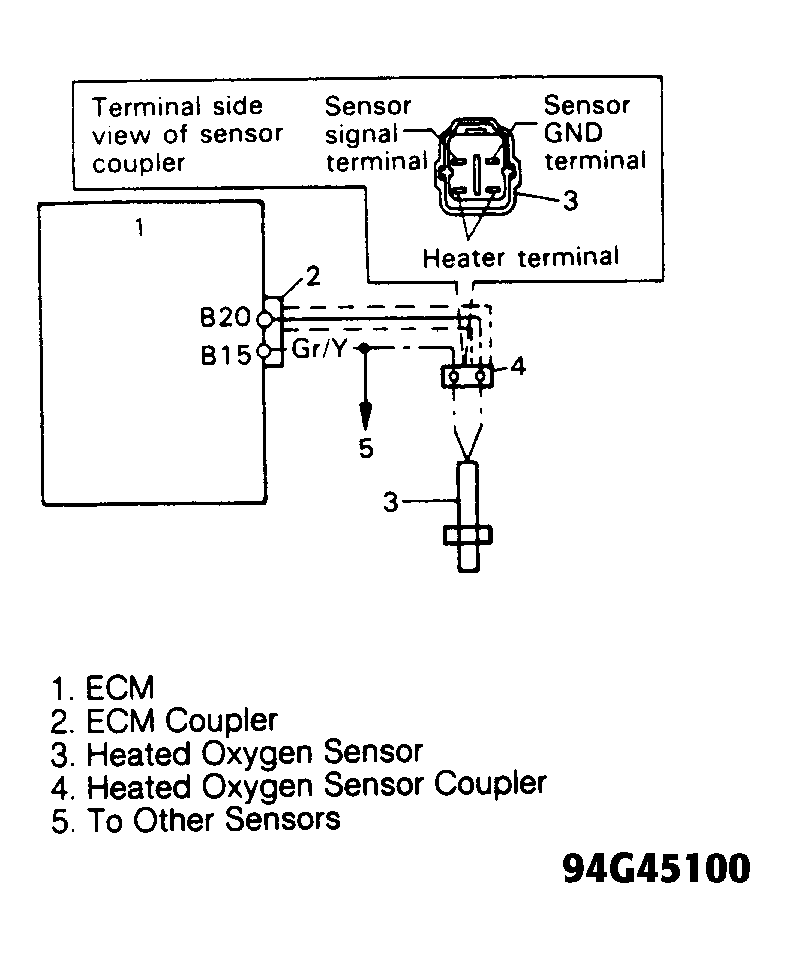

Fig 1: Code 13, Schematic - Oxygen Sensor Circuit

G94G45100

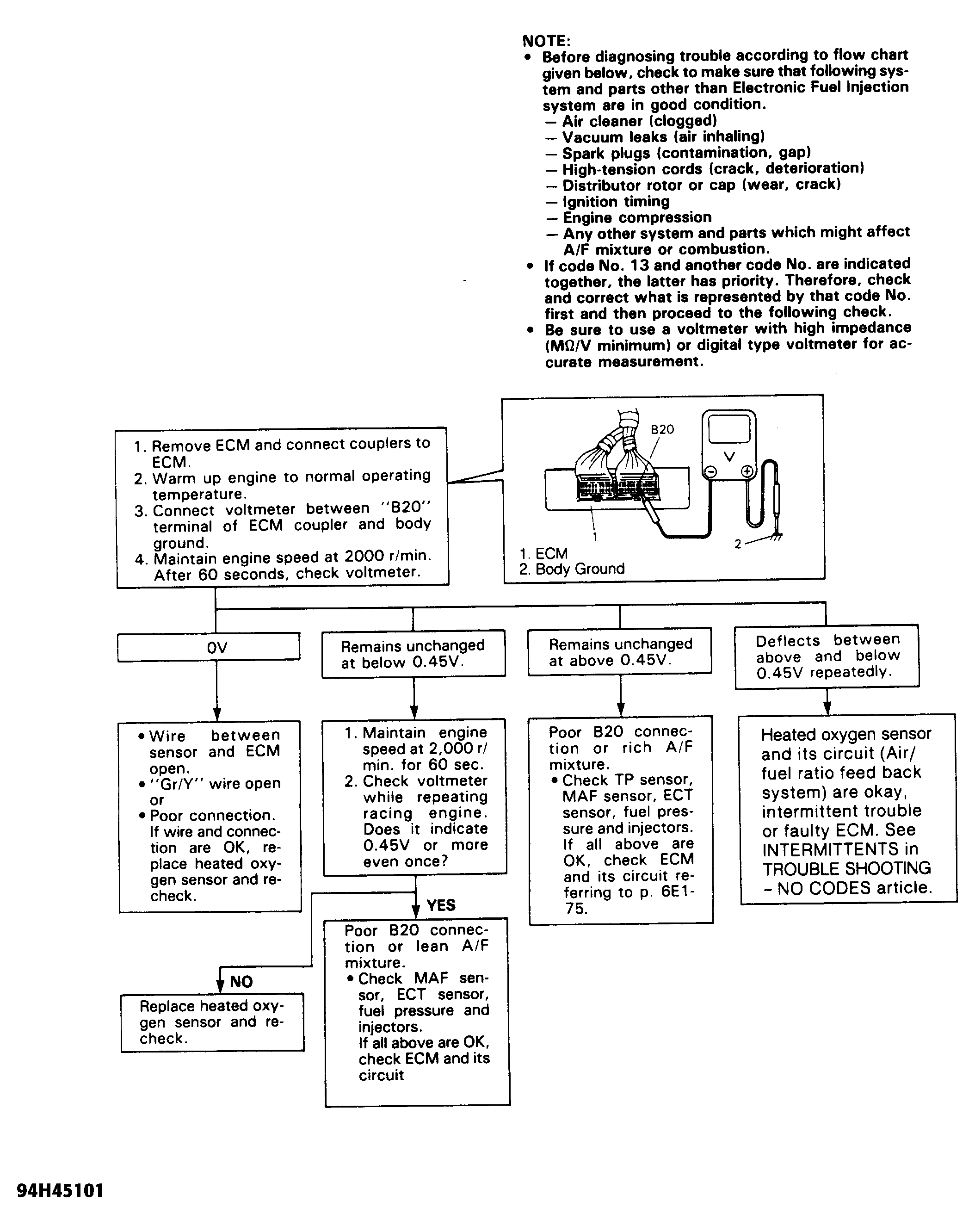

Fig 2: Code 13, Flow Chart - Oxygen Sensor Circuit

G94H45101
