Code 13 - Heated Oxygen Sensor Circuit

Fig 1: Code 13, Schematic - Oxygen Sensor Circuit

G200280

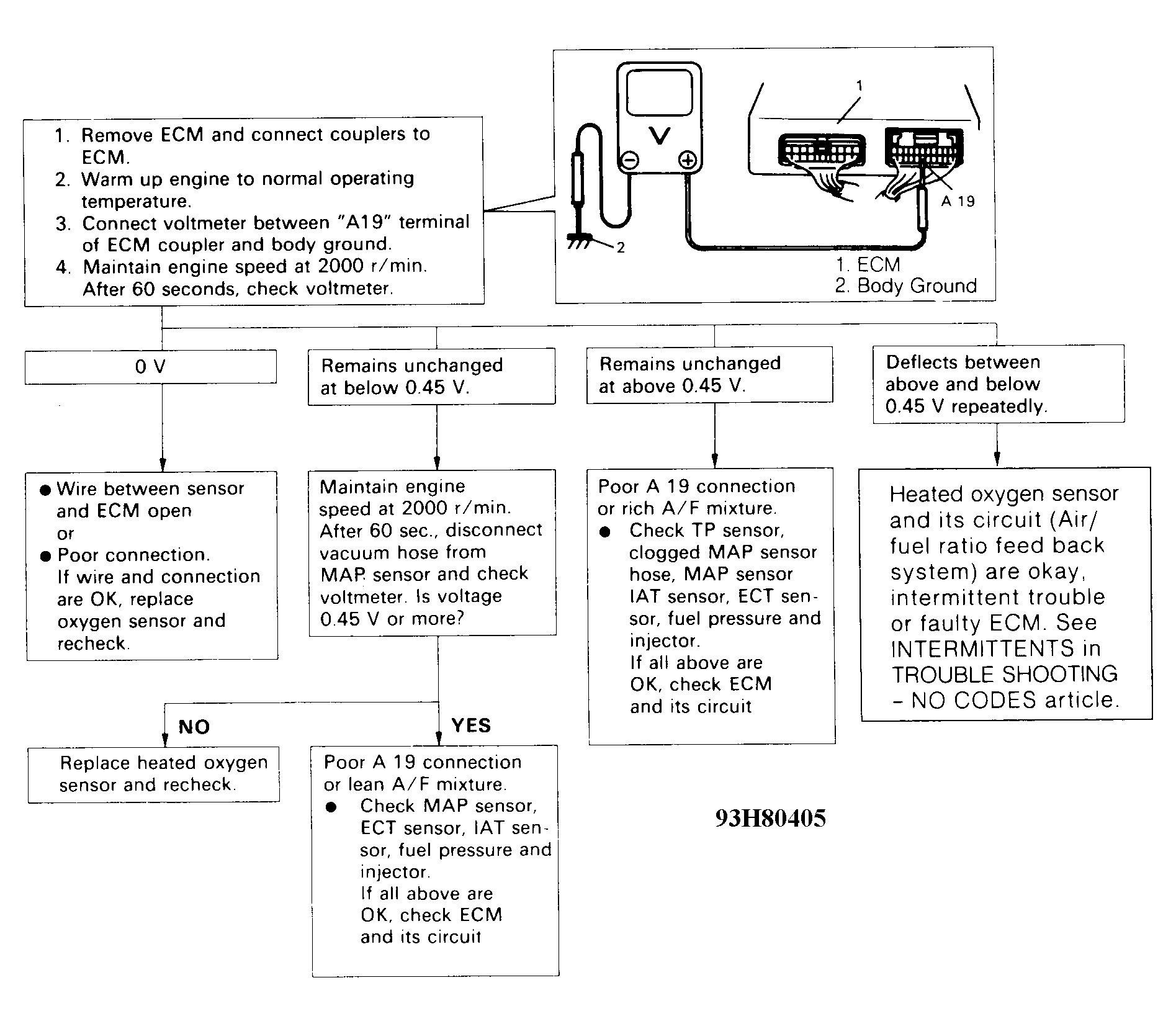

Fig 2: Code 13, Flow Chart - Oxygen Sensor Circuit

G93H80405
